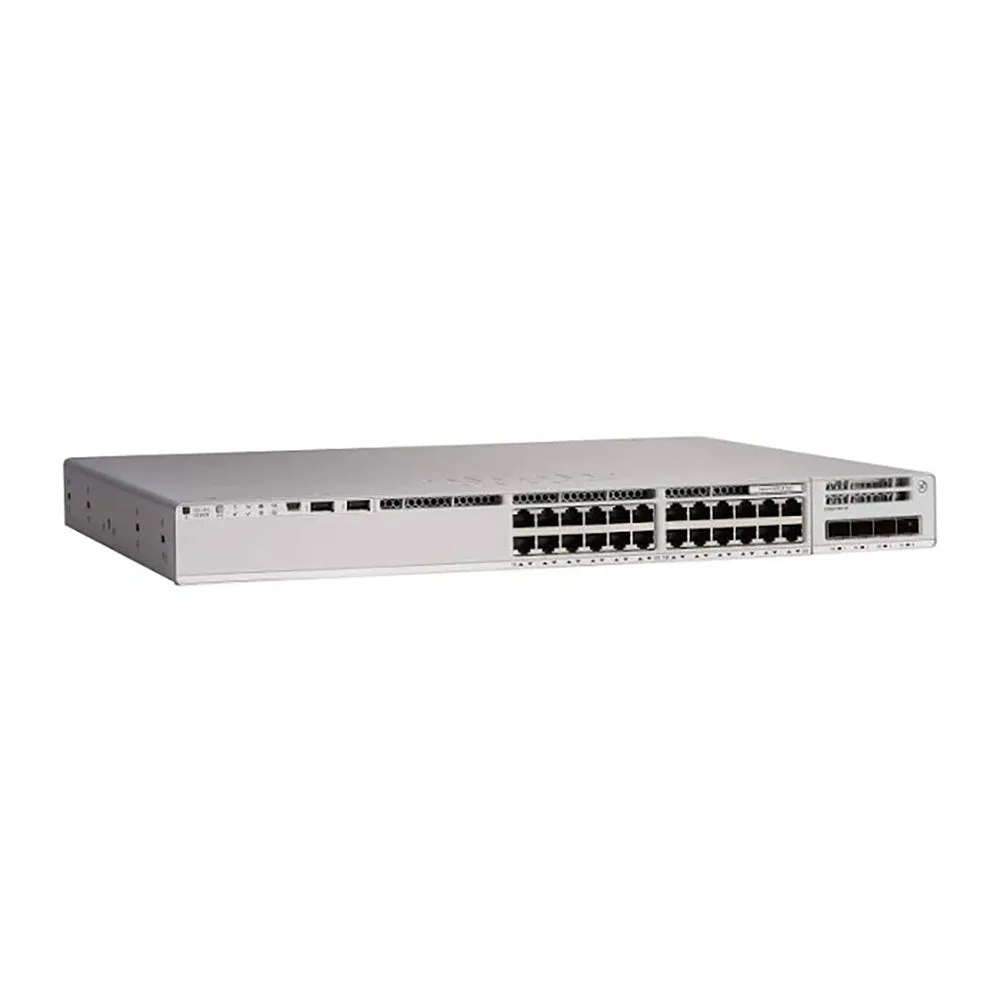

Cisco C9200-24P
24 x 10/100/1000 RJ-45 PoE+ · 128 Gbps
Cisco C9200-24P-A
Cisco · Model C9200-24P-A
Condition: Not stated on import · Availability: Quote on request
- Ports
- 24
- Speed
- 1G
- PoE
- —
- Capacity
- 128 Gbps
Campus / branch access closets where user density and PoE budget matter. Wiring closet / branch / campus access feeding APs, phones, or cameras within listed PoE budget. Density starts at the published 24-port faceplate. For C9200-24P-A specifically, keep the series context (Cisco Catalyst 9200) when comparing alternatives.
Datasheet: not attached yet.
Product overview
Cisco C9200-24P-A (Cisco Catalyst 9200) is a distinct PID for access-poe selection. Do not substitute sibling SKUs without checking the published port and capacity fields for C9200-24P-A. Cisco C9200-24P-A is a Cisco Catalyst 9200 PoE-capable 24-port 1G switch designed for high-density user access and powered endpoints with published uplink Modular (NM-4G / NM-4X). Switching capacity on record: 128 Gbps. Forwarding on record: 95.23 Mpps. Wiring closet / branch / campus access feeding APs, phones, or cameras within listed PoE budget. Density starts at the published 24-port faceplate.
Cisco C9200-24P-A
Cisco C9200-24P-A: Cisco C9200-24P-A is a Cisco Catalyst 9200 PoE-capable 24-port 1G switch designed for high-density user access and powered endpoints with published uplink Modular (NM-4G / NM-4X). Switching capacity on record: 128 Gbps. Forwarding on record: 95.23 Mpps. Key published facts — Published downlink: 24 x 10/100/1000 PoE+; Published uplink: Modular (NM-4G / NM-4X); PoE state: 370W / 740W max.
Product Overview
Cisco C9200-24P-A (Cisco Catalyst 9200) is a distinct PID for access-poe selection. Do not substitute sibling SKUs without checking the published port and capacity fields for C9200-24P-A. Cisco C9200-24P-A is a Cisco Catalyst 9200 PoE-capable 24-port 1G switch designed for high-density user access and powered endpoints with published uplink Modular (NM-4G / NM-4X). Switching capacity on record: 128 Gbps. Forwarding on record: 95.23 Mpps. Wiring closet / branch / campus access feeding APs, phones, or cameras within listed PoE budget. Density starts at the published 24-port faceplate.
Key Features
- Published downlink: 24 x 10/100/1000 PoE+
- Published uplink: Modular (NM-4G / NM-4X)
- PoE state: 370W / 740W max
- Switching capacity: 128 Gbps
- Forwarding rate: 95.23 Mpps
- Stacking / HA note: 160 Gbps
- Network role: access-poe
Technical Specs
- downlink: 24 x 10/100/1000 PoE+
- uplink: Modular (NM-4G / NM-4X)
- poe: 370W / 740W max
- switching_capacity: 128 Gbps
- forwarding_rate: 95.23 Mpps
- dimensions: 1.73 x 17.5 x 13.8 inch
- power: PWR-C6-600WAC
- weight: 12.12 lb (5.5 kg)
- stacking: 160 Gbps
- poe_budget: 370W / 740W max
Deployment Scenarios
Campus / branch access closets where user density and PoE budget matter. Wiring closet / branch / campus access feeding APs, phones, or cameras within listed PoE budget. Density starts at the published 24-port faceplate. For C9200-24P-A specifically, keep the series context (Cisco Catalyst 9200) when comparing alternatives.
Technical Selection Notes
Select C9200-24P-A when the requirement matches this series positioning (Cisco Catalyst 9200). Size PoE budget against device draw before stacking or license PIDs. Published mix for C9200-24P-A: 24 x 10/100/1000 PoE+ / Modular (NM-4G / NM-4X).
Not Recommended For
25/100G TOR or non-PoE optical-only leaf unless listed on this PID.
Related Model Comparison
| Model | Ports | Layer | PoE | Use case |
|---|---|---|---|---|
| C9200-24P-A | 24 x 10/100/1000 PoE+ | access-poe | 370W / 740W max | Current PID |
| C9200L-24P-4X-A | 24×1G PoE+ | access-poe | 370 W (600 W PSU) | Cisco C9200L-24P-4X-A is a Cisco Catalyst 9200 PoE-capable 24-port 1G switch designed for high-density user access and powered endpoints. Switching capacity on |
| C9200-24P | 24 x 10/100/1000 RJ-45 PoE+ | 370W (single PSU), 740W (dual PSU) | ||
| C9200-24P-E | 24 x 10/100/1000 PoE+ | 370W / 740W |
FAQ
What network role does C9200-24P-A fit?
Cisco C9200-24P-A is a Cisco Catalyst 9200 PoE-capable 24-port 1G switch designed for high-density user access and powered endpoints with published uplink Modular (NM-4G / NM-4X). Switching capacity on record: 128 Gbps. Forwarding on record: 95.23 Mpps.
What downlink ports does C9200-24P-A publish?
24 x 10/100/1000 PoE+
What uplink option is listed for C9200-24P-A?
Modular (NM-4G / NM-4X)
Can C9200-24P-A support PoE endpoints?
Published PoE state for this PID: 370W / 740W max. Size devices against the listed budget only.
What switching capacity is verified for C9200-24P-A?
128 Gbps
What scenarios suit Cisco C9200-24P-A?
Wiring closet / branch / campus access feeding APs, phones, or cameras within listed PoE budget. Density starts at the published 24-port faceplate.
Related Products
Request a quote — availability is quote on request.
Key features
Published downlink: 24 x 10/100/1000 PoE+ Published uplink: Modular (NM-4G / NM-4X) PoE state: 370W / 740W max Switching capacity: 128 Gbps Forwarding rate: 95.23 Mpps Stacking / HA note: 160 Gbps Network role: access-poe
Technical specifications
| Model | C9200-24P-A |
|---|---|
| Manufacturer model | C9200-24P-A |
| Display model | C9200-24P-A |
| Layer | access-poe |
| Port count | 24 |
| Downlink ports | 24 x 10/100/1000 PoE+ |
| Uplink ports | Modular (NM-4G / NM-4X) |
| Port speed | 1G |
| Switching capacity | 128 Gbps |
| Forwarding rate | 95.23 Mpps |
| PoE budget | 370W / 740W max |
| Stacking | 160 Gbps |
| Power supply | PWR-C6-600WAC |
| Dimensions | 1.73 x 17.5 x 13.8 inch |
| Weight | 12.12 lb (5.5 kg) |
| Condition | Not stated on import |
| Availability | Quote on request |
Applications
Campus / branch access closets where user density and PoE budget matter. Wiring closet / branch / campus access feeding APs, phones, or cameras within listed PoE budget. Density starts at the published 24-port faceplate. For C9200-24P-A specifically, keep the series context (Cisco Catalyst 9200) when comparing alternatives.
Networking / deployment scenarios
Campus / branch access closets where user density and PoE budget matter. Wiring closet / branch / campus access feeding APs, phones, or cameras within listed PoE budget. Density starts at the published 24-port faceplate. For C9200-24P-A specifically, keep the series context (Cisco Catalyst 9200) when comparing alternatives.
FAQ
What network role does C9200-24P-A fit?
Cisco C9200-24P-A is a Cisco Catalyst 9200 PoE-capable 24-port 1G switch designed for high-density user access and powered endpoints with published uplink Modular (NM-4G / NM-4X). Switching capacity on record: 128 Gbps. Forwarding on record: 95.23 Mpps.
What downlink ports does C9200-24P-A publish?
24 x 10/100/1000 PoE+
What uplink option is listed for C9200-24P-A?
Modular (NM-4G / NM-4X)
Can C9200-24P-A support PoE endpoints?
Published PoE state for this PID: 370W / 740W max. Size devices against the listed budget only.
What switching capacity is verified for C9200-24P-A?
128 Gbps
What scenarios suit Cisco C9200-24P-A?
Wiring closet / branch / campus access feeding APs, phones, or cameras within listed PoE budget. Density starts at the published 24-port faceplate.
Datasheet download
No datasheet file is attached yet. Request documentation with your RFQ if needed.
