Ports and uplinks
- 24 × 1G RJ-45 PoE+
- Modular uplink: C9200-NM-4G (4 × 1G SFP) or C9200-NM-4X (4 × 10G SFP+) — confirm one on the RFQ
Product

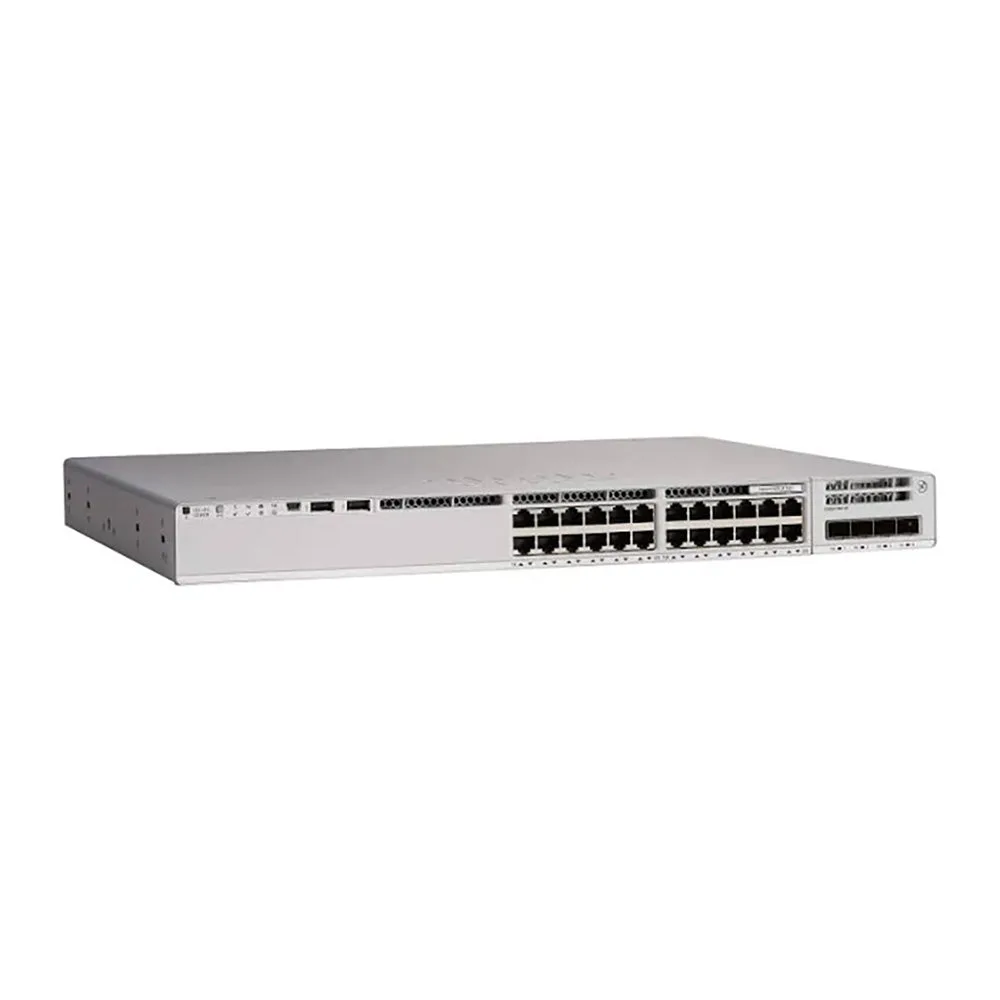

Cisco C9200-24P-E
Catalyst 9200 modular 24-port PoE+ access switch with Network Essentials (-E). StackWise-160.
- Ports
- 24
- Speed
- 1GE PoE+
- PoE
- PoE+
- Capacity
- 128 Gbps
- Request a Quote for this model
- Ask an Expert for technical clarification
- Model selection support against port / PoE / uplink needs
- Alternative model support when another catalog model fits better
Product overview
C9200-24P-E is a Catalyst 9200 modular access switch: 24 × 1G PoE+ copper ports, Network Essentials (-E) software, modular uplinks (C9200-NM-4G or C9200-NM-4X), 128 Gbps / 95.23 Mpps, StackWise-160, and field-replaceable fans/PSUs on authorized listings.
Shortlist it for SMB, branch, and campus closets that need PoE+ with modular uplink choice under Essentials licensing. Do not substitute C9200-24P-A without reviewing Advantage features (VRF/VXLAN/SD-Access). Fixed-uplink C9200L-24P-4G-E is a different hardware PID.
Technical specifications
Key specifications for this model.
| Model | C9200-24P-E |
|---|---|
| Manufacturer model | C9200-24P-E |
| Display model | C9200-24P-E |
| Network role | Access |
| Port count | 24 |
| Downlink / data ports | 24 × 10/100/1000 Mbps RJ-45 PoE+ (IEEE 802.3at) |
| Uplink ports | Modular network module — C9200-NM-4G or C9200-NM-4X (confirm installed NM on the quote) |
| Port speed | 1GE PoE+ |
| Switching capacity | 128 Gbps |
| Forwarding rate | 95.23 Mpps |
| PoE | PoE+ |
| PoE budget | 370 W with one PWR-C6-600WAC; up to 740 W with dual 600 W supplies (confirm on quote) |
| Stacking | StackWise-160 (up to 8 members with C9200-STACK-KIT) |
| Power supply | PWR-C6-600WAC listed — confirm second PSU when PoE budget needs 740 W |
| Dimensions | 1.73" × 17.5" × 13.8" (approx.) |
| Weight | 12.12 lb (5.5 kg) |
| Availability | Quote on request |
Hardware, performance, and power
Performance
- 128 Gbps switching capacity
- 95.23 Mpps forwarding
Power and PoE
- PoE+ access ports
- About 370 W PoE with one 600 W PSU; up to about 740 W with dual 600 W supplies
Stacking
- StackWise-160
Software
- Network Essentials (-E) — foundational L2 plus limited L3 (static / OSPF scale limits on Essentials)
Physical
- About 1.73 × 17.5 × 13.8 in; about 12.12 lb
Deployment role
- Campus / branch PoE access on Catalyst 9200 modular
Deployment scenarios
Branch and SMB closets with APs, phones, and cameras on PoE+.
Designs that need modular 1G or 10G uplinks without buying Advantage.
StackWise-160 stacks that must stay on modular C9200 (not fixed C9200L).
Campus / branch access closets where user density and PoE budget matter. Wiring closet / branch / campus access feeding APs, phones, or cameras within listed PoE budget. Density starts at the published 24-port faceplate.
Technical selection notes
Name the network module and PoE watt plan on the RFQ. -E and -A are different software PIDs. Confirm whether routing stays upstream or uses Essentials-scale OSPF/static on the switch.
Not recommended for
Not Network Advantage — use C9200-24P-A when VRF/VXLAN/SD-Access is required.
Not a fixed-uplink C9200L — use C9200L-24P-4G-E when FRU fans/NM are not required.
Not a data-only switch — use C9200-24T-E/A when PoE is not needed.
What to confirm on the quote
- Exact PID C9200-24P-E
- Network module PID (C9200-NM-4G or C9200-NM-4X)
- PoE endpoint watt estimate vs 370 W / 740 W plan
- StackWise-160 yes/no and stack kit
- Quantity, destination, documentation, availability
Related / alternative models
Same-brand family first, then same deployment role, then cross-brand equivalents when useful. Different power/optic technologies are labeled explicitly.
FAQ
How many PoE access ports are listed?
24 × 1G RJ-45 PoE+.
What license suffix is this?
Network Essentials (-E). Advantage features need C9200-24P-A.
Which uplink modules are supported?
C9200-NM-4G and C9200-NM-4X on authorized data — confirm what ships.
What capacity is listed?
128 Gbps and 95.23 Mpps.
How does it differ from C9200L-24P-4G-E?
C9200-24P-E is modular with FRU fans/PSU and StackWise-160. C9200L has fixed uplinks and a different stacking envelope.
