Ports
- 24 × 1G PoE+
- 4 × 1G SFP fixed
Product

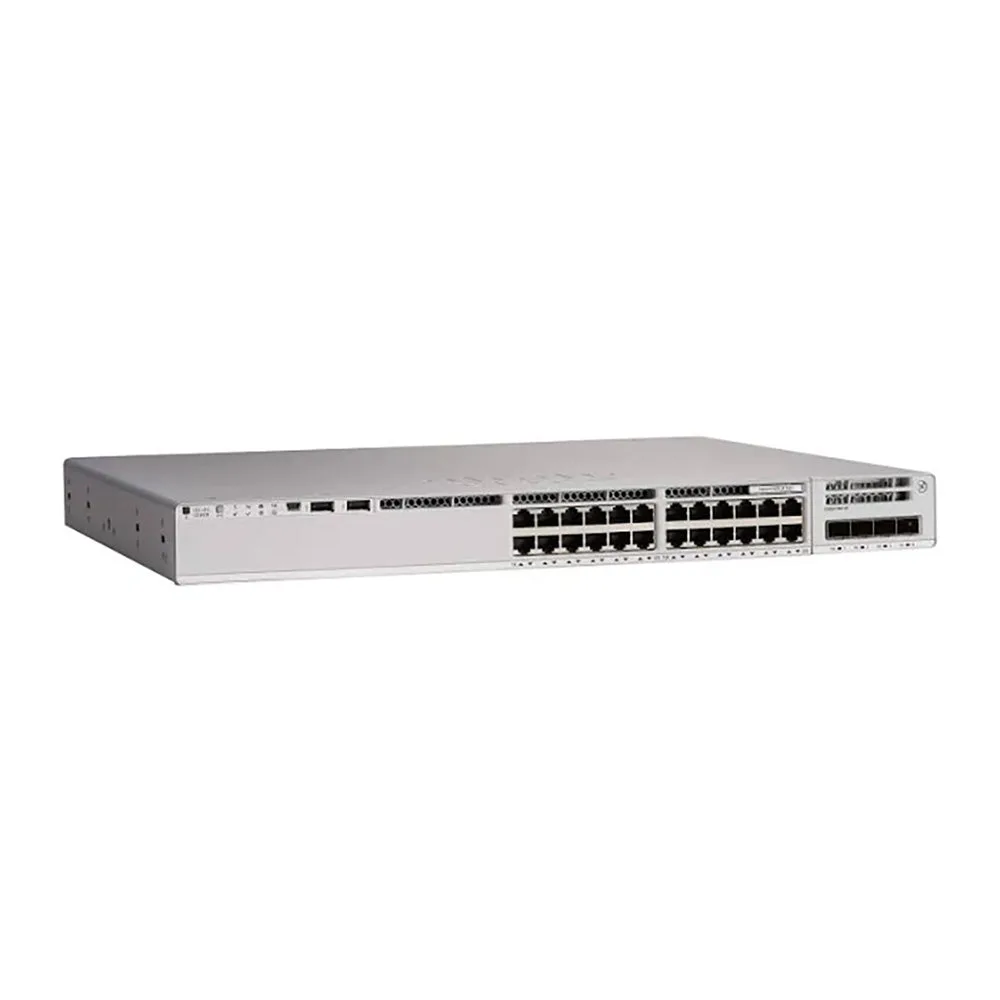

Cisco C9200L-24P-4G-E
Catalyst 9200L fixed 24-port PoE+ with 4×1G SFP uplinks, Network Essentials.
- Ports
- 24
- Speed
- 1GE PoE+
- PoE
- PoE+
- Capacity
- 56 Gbps
- Request a Quote for this model
- Ask an Expert for technical clarification
- Model selection support against port / PoE / uplink needs
- Alternative model support when another catalog model fits better
Product overview
C9200L-24P-4G-E is the fixed-uplink Catalyst 9200L PoE+ access PID: 24 × 1G PoE+, four fixed 1G SFP uplinks, Network Essentials, and a smaller stacking/FRU envelope than modular C9200.
Choose it when uplinks can stay 1G SFP and you do not need FRU fans or modular 10G NM options. Compare with C9200-24P-E when modular uplinks or StackWise-160 matter.
Technical specifications
Key specifications for this model.
| Model | C9200L-24P-4G-E |
|---|---|
| Manufacturer model | C9200L-24P-4G-E |
| Display model | C9200L-24P-4G-E |
| Network role | Access |
| Port count | 24 |
| Downlink / data ports | 24 × 10/100/1000 Mbps RJ-45 PoE+ |
| Uplink ports | 4 × 1 Gbps SFP fixed uplinks |
| Port speed | 1GE PoE+ |
| Switching capacity | 56 Gbps |
| Forwarding rate | 41.66 Mpps |
| PoE | PoE+ |
| PoE budget | 370 W default / up to 740 W max on authorized listings — confirm PSU plan |
| Stacking | StackWise-80 class stacking on C9200L — confirm kit on quote |
| Power supply | Confirm PSU SKU on quote |
| Dimensions | 1U fixed access |
| Weight | See product record / quote |
| Availability | Quote on request |
Hardware, performance, and power
Performance
- 56 Gbps / 41.66 Mpps
Software
- Network Essentials (-E)
Role
- Fixed-uplink PoE access
Deployment scenarios
Closets that standardize on 1G fiber uplinks.
Budgets that prefer C9200L over modular C9200.
Campus / branch access closets where user density and PoE budget matter. Wiring closet / branch / campus access feeding APs, phones, or cameras within listed PoE budget. Density starts at the published 24-port faceplate.
Technical selection notes
Do not assume modular NM support. Confirm PoE budget and stack kit.
Not recommended for
Not modular C9200-24P-E.
Not Advantage licensing without the matching -A PID.
What to confirm on the quote
- Exact PID C9200L-24P-4G-E
- Optics for 1G SFP
- PoE watt plan
- Stack yes/no
- Quantity, destination, docs, availability
Related / alternative models
Same-brand family first, then same deployment role, then cross-brand equivalents when useful. Different power/optic technologies are labeled explicitly.
FAQ
Are uplinks modular?
No — four fixed 1G SFP uplinks on this PID.
PoE ports?
24 × 1G PoE+.
Capacity?
56 Gbps / 41.66 Mpps on authorized data.
Resources
Request a quote for C9200L-24P-4G-E
Share quantity, preferred condition, and deployment requirements. For exact configuration and availability, request a quote.
