Ports and uplinks
- 48 × 1G RJ-45 PoE+
- Modular uplink: C9300-NM-4G listed — confirm exact NM
Product

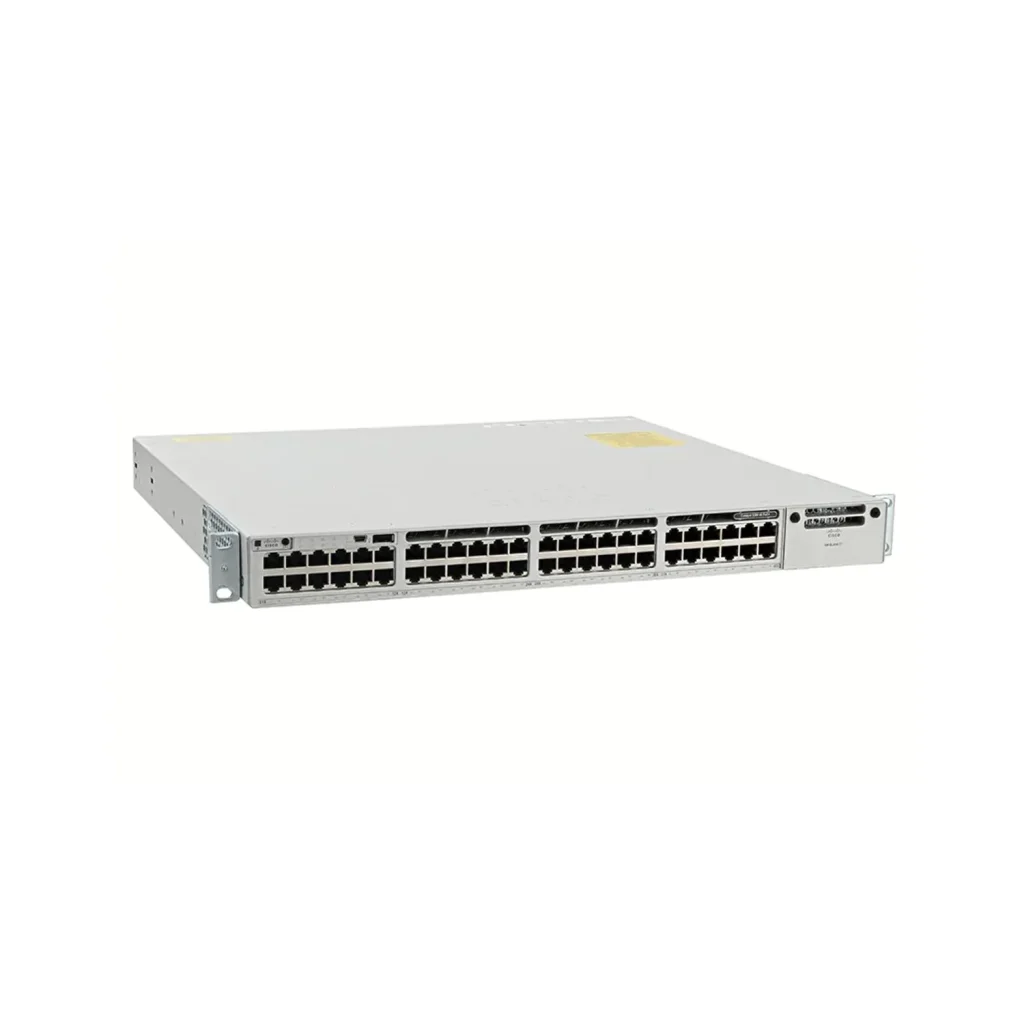

Cisco C9300-48P-E
Catalyst 9300 48-port Gigabit PoE+ access switch with modular uplink and Network Essentials (-E). StackWise-480.
- Ports
- 48
- Speed
- 1GE PoE+
- PoE
- PoE+
- Capacity
- 256 Gbps standalone; 736 Gbps stacked
- Request a Quote for this model
- Ask an Expert for technical clarification
- Model selection support against port / PoE / uplink needs
- Alternative model support when another catalog model fits better
Product overview
C9300-48P-E is a Catalyst 9300 48-port PoE+ access switch on the Network Essentials (-E) feature set. The listing shows 48 × 1G PoE+ copper ports, a C9300-NM-4G network module row, 256 Gbps standalone / 736 Gbps stacked capacity, StackWise-480, and a PWR-C1-1100WAC-P power supply.
Use it for high-density PoE closets that must stay on Catalyst 9300 stacking. Compare watt needs carefully against C9300-24P-E, and compare data-only needs against C9300-48T-E. Network Advantage (-A) twins are a different software PID — quote the exact -E or -A required.
Technical specifications
Key specifications for this model.
| Model | C9300-48P-E |
|---|---|
| Manufacturer model | C9300-48P-E |
| Display model | C9300-48P-E |
| Network role | Access |
| Port count | 48 |
| Downlink / data ports | 48 × 10/100/1000 Mbps RJ-45 PoE+ auto-sensing |
| Uplink ports | Network module C9300-NM-4G on this listing — confirm installed NM on the quote |
| Port speed | 1GE PoE+ |
| Switching capacity | 256 Gbps standalone; 736 Gbps stacked |
| Forwarding rate | 190.47 Mpps standalone; 547.62 Mpps stacked |
| PoE | PoE+ |
| Stacking | StackWise-480 |
| Power supply | PWR-C1-1100WAC-P |
| Dimensions | 1.73" × 17.5" × 17.7" (4.4 × 44.5 × 44.9 cm) with PSU |
| Weight | 16.73 lb (7.59 kg) |
| Availability | Quote on request |
Hardware, performance, and power
Performance
- 256 Gbps standalone; 736 Gbps stacked
- 190.47 Mpps standalone; 547.62 Mpps stacked
Power and PoE
- PoE+ access ports
- PWR-C1-1100WAC-P listed — confirm PoE watt budget on the quote
Stacking
- StackWise-480
Physical
- About 1.73 × 17.5 × 17.7 in with PSU
- About 16.73 lb (7.59 kg)
Deployment role
- Campus PoE access closet on Catalyst 9300
Deployment scenarios
48-port PoE closets with APs and phones on Catalyst 9300.
Network Essentials (-E) procurements that must not be substituted with -A without review.
StackWise-480 refreshes that need a 48P member.
Campus / branch access closets where user density and PoE budget matter. Wiring closet / branch / campus access feeding APs, phones, or cameras within listed PoE budget. Density starts at the published 48-port faceplate.
Technical selection notes
Name the network module and PoE watt plan on the RFQ. Do not treat -E and -A as interchangeable. If endpoints need fewer ports, shortlist C9300-24P-E.
Not recommended for
Not a data-only switch — use C9300-48T-E when PoE is not required.
Not a 10G fiber aggregation switch.
Not a Catalyst 9500 core.
What to confirm on the quote
- Exact PID C9300-48P-E
- Network module PID
- Endpoint watt estimate vs available PoE budget
- StackWise-480 yes/no and stack kit
- Quantity, destination, documentation, availability
Related / alternative models
Same-brand family first, then same deployment role, then cross-brand equivalents when useful. Different power/optic technologies are labeled explicitly.
Same brand
Cisco C9300-48P-A
48 x 10/100/1000 Mbps RJ-45 PoE+ auto-sensing · 256 Gbps (standalone); up to 736 Gbps (stacked)
FAQ
How many PoE access ports are listed?
48 × 1G RJ-45 PoE+ auto-sensing.
Which network module is listed?
C9300-NM-4G on this catalog row — confirm what ships on the quote.
What capacity is listed?
256 Gbps standalone and 736 Gbps stacked; 190.47 / 547.62 Mpps.
How does it differ from C9300-48T-E?
48P-E is PoE+. 48T-E is data-only Non-PoE.
How does -E differ from -A?
Different software/feature PID. Quote the exact suffix your design requires.
What belongs on the RFQ?
Exact PID, NM, watt plan, stack kit, quantity, destination.
Resources
Request a quote for C9300-48P-E
Share quantity, preferred condition, and deployment requirements. For exact configuration and availability, request a quote.
