Ports and uplinks
- 48 × 10GE SFP+
- 6 × 100GE QSFP28
Product

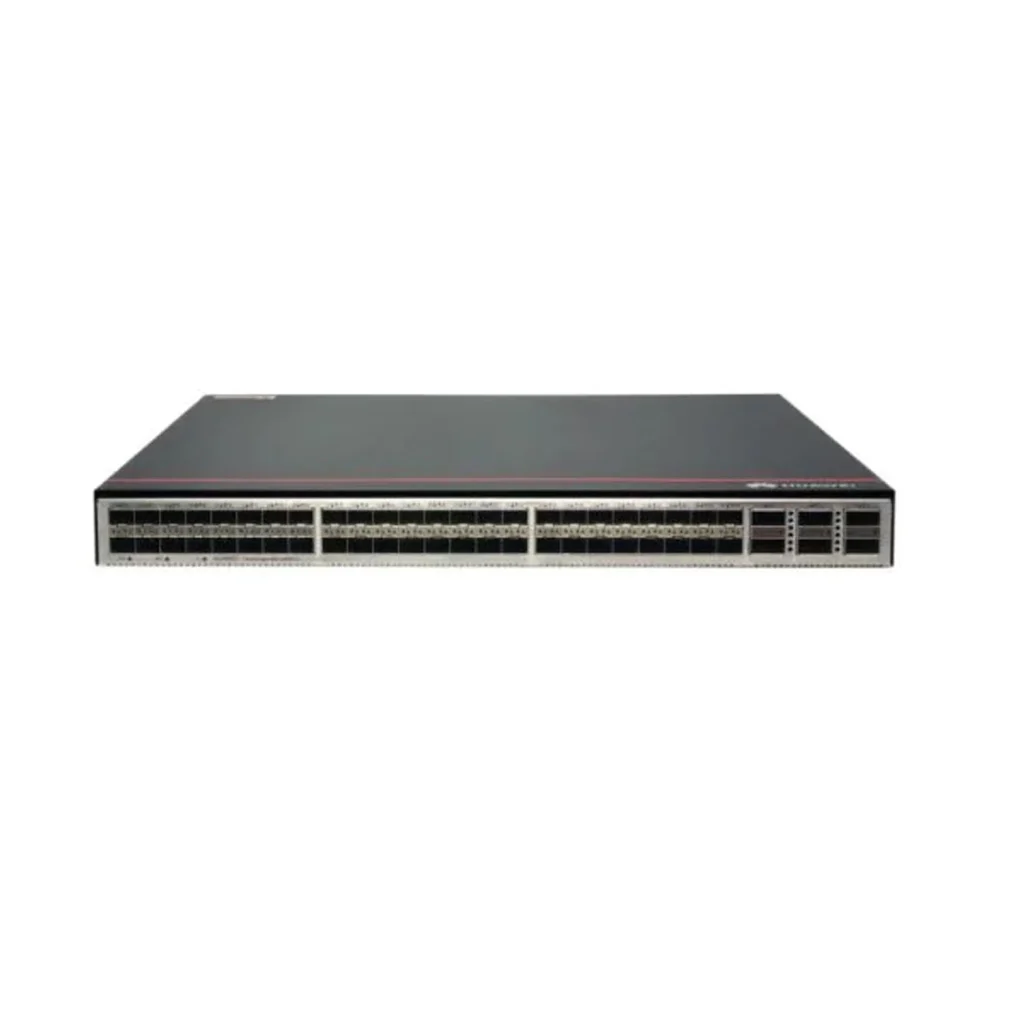

Huawei CE6820H-48S6CQ
CloudEngine CE6820H leaf: 48×10GE SFP+ + 6×100GE QSFP28, 2.16 Tbps / 470 Mpps.
- Ports
- 48
- Speed
- 10G
- PoE
- Non-PoE
- Capacity
- 2.16 Tbps
- Request a Quote for this model
- Ask an Expert for technical clarification
- Model selection support against port / PoE / uplink needs
- Alternative model support when another catalog model fits better
Product overview
CE6820H-48S6CQ is a CloudEngine fixed 1U data-center leaf with 48 × 10GE SFP+ access ports and 6 × 100GE QSFP28 uplinks (40/100GE flexible on authorized Huawei materials). Authorized data lists 2.16 Tbps switching capacity and 470 Mpps forwarding.
Shortlist it beside CE6881H-48S6CQ when the faceplate stays 10G SFP+ toward 100G spine links but forwarding/buffer class differs. Confirm optic types, reach, airflow/PSU suffix (-B/-F kits), and software feature licensing on the RFQ — do not treat transceiver choice as uncertain hardware uplink count.
Technical specifications
Key specifications for this model.
| Model | CE6820H-48S6CQ |
|---|---|
| Manufacturer model | CE6820H-48S6CQ |
| Display model | CE6820H-48S6CQ |
| Network role | Data Center |
| Port count | 48 |
| Downlink / data ports | 48 × 10GE SFP+ |
| Uplink ports | 6 × 100GE QSFP28 (40/100GE capable on authorized listings) |
| Port type | SFP+ |
| Port speed | 10G |
| Switching capacity | 2.16 Tbps |
| Forwarding rate | 470 Mpps |
| PoE | Non-PoE |
| Stacking | Confirm fabric options on quote |
| Power supply | Confirm PSU/airflow |
| Dimensions | 1U class |
| Weight | See quote |
| Availability | Quote on request |
Hardware, performance, and power
Performance
- 2.16 Tbps
- 470 Mpps
Power / cooling
- Confirm PSU and airflow suffix on the quote
Role
- 10G DC leaf / ToR toward 100G spine
Deployment scenarios
10G leaf refreshes on CloudEngine.
Data center leaf-spine / TOR planning based on the published optic mix. Leaf / TOR where the published optic map matches fabric speed. Fabric planning starts from published capacity (2.16 Tbps).
Technical selection notes
Hardware uplink count is 6 × 100GE QSFP28 on authorized OEM data. Still confirm transceiver type/reach, firmware, airflow kit, and commercial availability on the RFQ.
Not recommended for
Not 25G leaf.
Not campus PoE.
What to confirm on the quote
- Exact PID CE6820H-48S6CQ
- Optics
- PSU/airflow
- Quantity, destination, docs, availability
Related / alternative models
Same-brand family first, then same deployment role, then cross-brand equivalents when useful. Different power/optic technologies are labeled explicitly.
Same brand
Huawei CE6863E-48S6CQ
48 × 25 GE SFP28 (10/25 GE capable on authorized listings) · PoE Non-PoE
FAQ
How many uplinks are listed?
6 × 100GE QSFP28 on authorized Huawei CloudEngine CE6820H-48S6CQ data.
What access speed is listed?
48 × 10GE SFP+.
What capacity is listed?
2.16 Tbps and 470 Mpps.
Is optic type included?
No — confirm transceiver type and reach on the RFQ. The QSFP28 uplink count itself is a hardware faceplate fact.
