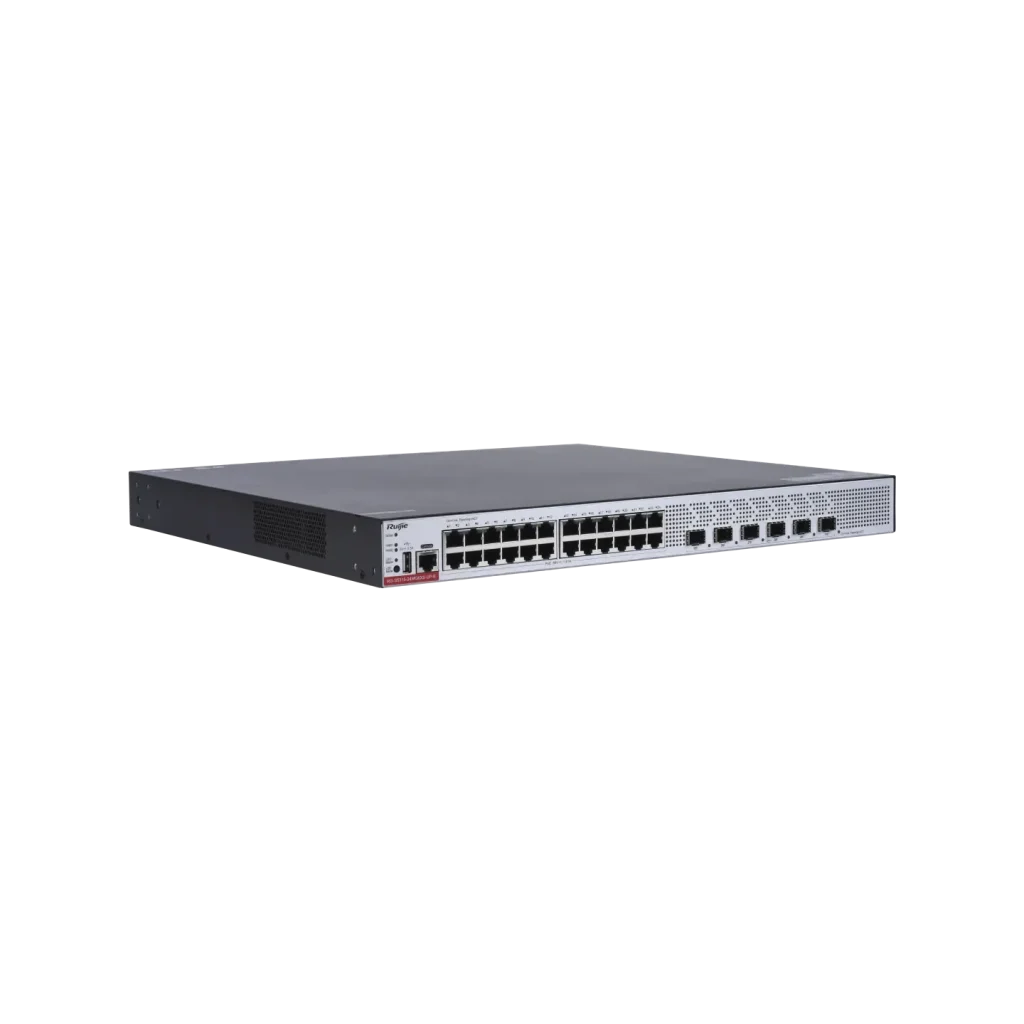

Ruijie RG-S5315-24MG6XS-UP-E
24-port Multi-GE PoE++ campus access switch with 10G-capable uplinks — Ruijie RG-S5315-E.
- Ports
- 24
- Speed
- Multi-GE access / 10G uplink
- Capacity
- 336 Gbps
- Request a Quote for this model
- Ask an Expert for technical clarification
- Model selection support against port / PoE / uplink needs
- Alternative model support when another catalog model fits better
Product overview
The Ruijie RG-S5315-24MG6XS-UP-E is a campus Multi-GE PoE access switch with 24 × 100/1000/2500BASE-T downlinks and six 1G/2.5G/10G SFP+ uplinks. Designed for wiring closets that need higher-than-1G copper access for Wi-Fi 6/7 APs, cameras, and other powered endpoints. Suitable for enterprise campus and branch PoE refresh projects.
Technical specifications
Key specifications for this model.
| Model | RG-S5315-24MG6XS-UP-E |
|---|---|
| Manufacturer model | RG-S5315-24MG6XS-UP-E |
| Display model | RG-S5315-24MG6XS-UP-E |
| Layer | access-poe |
| Port count | 24 |
| Downlink / data ports | 24 × 100/1000/2500BASE-T PoE/PoE+/PoE++ |
| Uplink ports | 6 × 1G/2.5G/10G SFP+ |
| Port type | RJ45 |
| Port speed | Multi-GE access / 10G uplink |
| Switching capacity | 336 Gbps |
| Forwarding rate | 252 Mpps |
| PoE | IEEE 802.3af/at/bt (up to 90 W per port; total budget depends on PSU modules) |
| PoE budget | Total PoE power budget up to 1440W |
| Power supply | AC input: 100V to 240V AC, 50/60 Hz |
| Dimensions | 442 mm × 420 mm × 43.6 mm (17.40 in. × 16.54 in. × 1.72 in.) |
| Weight | ≤ 6.2 kg (13.67 lbs) |
| Availability | Quote on request |
Key features
24 × 100/1000/2500BASE-T access ports with PoE/PoE+/PoE++ Up to 90 W per port (IEEE 802.3bt), total PoE budget depends on installed power modules 6 × 1G/2.5G/10G SFP+ uplinks Modular dual power-supply design Campus access role for high-bandwidth AP and endpoint closets
Deployment scenarios
Enterprise campus access layers, education and healthcare floors, and sites upgrading from 1G PoE access to Multi-GE PoE with 10G-capable uplinks.
Suitable for campus and branch access closets feeding Wi-Fi 6/7 APs, IP cameras, phones, and multi-gigabit user devices within the available PoE budget.
Technical selection notes
Key considerations when selecting RG-S5315-24MG6XS-UP-E: confirm Multi-GE copper needs vs 1G-only designs, size PoE budget against endpoint draw and chosen PSU modules, and match uplink optics to the distribution layer. For exact configuration and availability, request a quote.
Not recommended for
Not ideal when only basic 1G non-PoE access is required, when industrial hardened hardware is needed, or when a fixed 100G data-center leaf platform is the design target.
Related / alternative models
Same-brand family first, then same deployment role, then cross-brand equivalents when useful. Different power/optic technologies are labeled explicitly.
FAQ
What is the port configuration of RG-S5315-24MG6XS-UP-E?
24 × 100/1000/2500BASE-T access ports with PoE/PoE+/PoE++, plus 6 × 1G/2.5G/10G SFP+ uplinks, per Ruijie product ordering information.
How much PoE power can this model deliver?
Each RJ45 port supports up to 90 W (IEEE 802.3bt). Total PoE output depends on the installed power modules (Ruijie documents module combinations up to 1600 W). Size modules to your endpoint load.
When should I choose Multi-GE instead of a 1G PoE access switch?
Choose Multi-GE when Wi-Fi 6/7 APs or other endpoints need more than 1G copper access while still requiring PoE and 10G-capable uplinks.
What uplink options are available?
Six fixed SFP+ uplink ports support 1G/2.5G/10G optics. Match optics to your distribution/aggregation layer.
What details are needed for a quote?
Share quantity, PoE load estimate, preferred power modules, optic types for the six uplinks, and deployment site type. For exact configuration and availability, request a quote.
