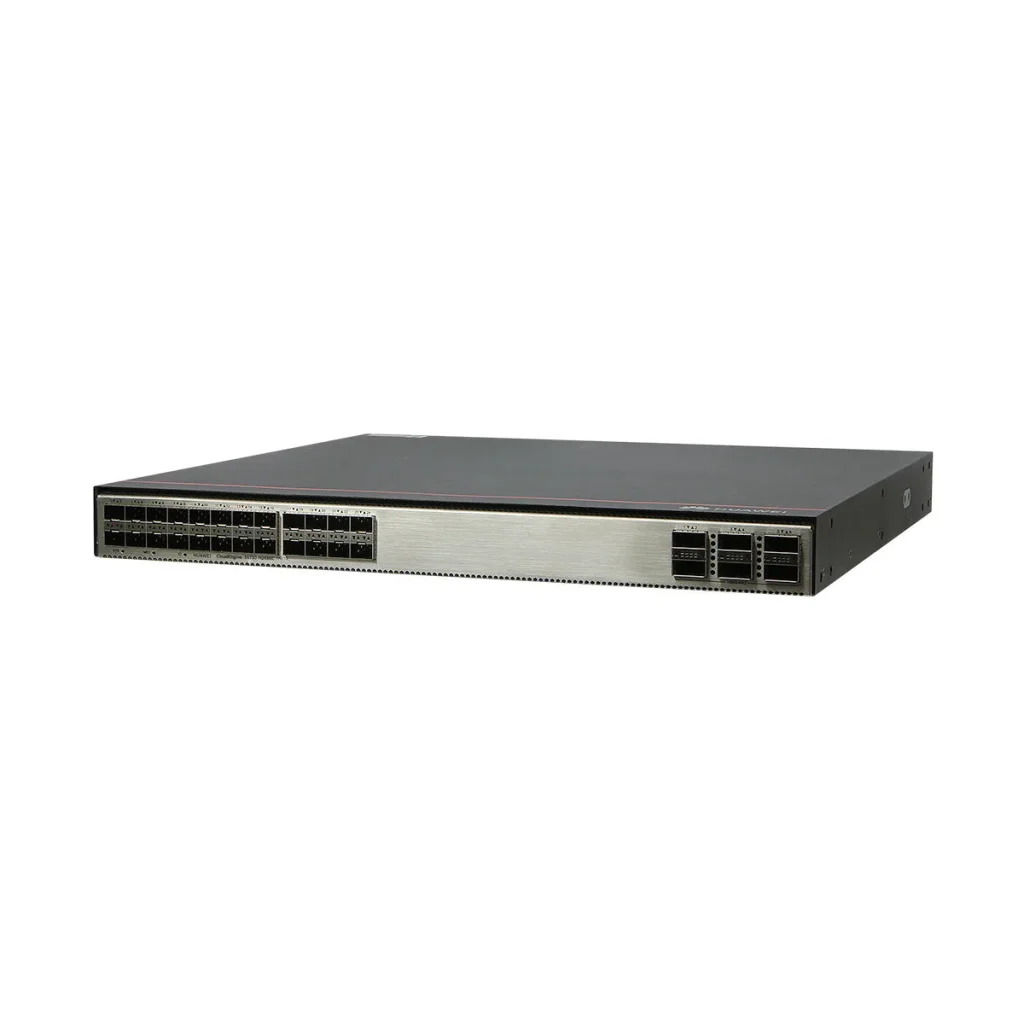

Huawei S6730-H24X6C
Aggregation switch with 24 × 10GE SFP+ and 6 × 40/100GE QSFP28. Non-PoE. iStack is listed.
- Ports
- 24
- Speed
- 10G
- PoE
- Non-PoE
- Capacity
- Up to 2.4 Tbps
- Request a Quote for this model
- Ask an Expert for technical clarification
- Model selection support against port / PoE / uplink needs
- Alternative model support when another catalog model fits better
Product overview
Huawei S6730-H24X6C is designed for campus aggregation network roles in the huawei-cloudengine-s6730-series family. Suitable for procurement shortlists where this model matches the required platform class. Key considerations when selecting include port/module needs, uplink design, and feature licensing for your site. For exact configuration and availability, request a quote.
Technical specifications
Key specifications for this model.
| Model | S6730-H24X6C |
|---|---|
| Manufacturer model | S6730-H24X6C |
| Display model | S6730-H24X6C |
| Layer | aggregation |
| Port count | 24 |
| Downlink / data ports | 24 × 10GE SFP+ ports |
| Uplink ports | 6 × 40/100GE QSFP28 ports |
| Port type | SFP+ |
| Port speed | 10G |
| Switching capacity | Up to 2.4 Tbps |
| Forwarding rate | 490 Mpps |
| PoE | Non-PoE |
| Stacking | Yes (iStack) |
| Power supply | Dual hot-swappable power modules (AC/DC) |
| Dimensions | 442 mm × 420 mm × 43.6 mm (17.4 in. × 16.5 in. × 1.7 in.) |
| Weight | ≤ 8.9 kg (19.62 lbs) |
| Availability | Quote on request |
Key features
Manufacturer PID: S6730-H24X6C Downlink: 24 × 10GE SFP+ ports Uplink: 6 × 40/100GE QSFP28 ports Switching capacity: Up to 2.4 Tbps Forwarding rate: 490 Mpps PoE: Non-PoE Layer / role: aggregation
Deployment scenarios
Campus aggregation or collapsed core where access uplinks are 10G and the next hop is 40G or 100G.
Suitable for campus aggregation deployments where this platform class is required. Confirm faceplate, modules, and software options against the project design.
Technical selection notes
Place it above access switches when the aggregation layer is 10G fiber with 40/100G uplinks. A 100G uplink does not make this a server leaf.
Not recommended for
Not a PoE closet switch and not a 25G server-facing leaf.
Related / alternative models
Same-brand family first, then same deployment role, then cross-brand equivalents when useful. Different power/optic technologies are labeled explicitly.
FAQ
What is the port map on S6730-H24X6C?
24 × 10GE SFP+ and 6 × 40/100GE QSFP28.
Does it support PoE?
No. It is Non-PoE.
Does the listing include stacking?
Yes. iStack is listed, with dual hot-swappable AC/DC power modules.
How does it differ from a CloudEngine leaf?
This PID is an aggregation platform. CE6820-48S6CQ-B and CE6885-48YS8CQ are data-center faceplates. Match the role before comparing speeds.
