Ports and uplinks
- 24 × 1G RJ-45 data
- 2 × 10G SFP+
Product

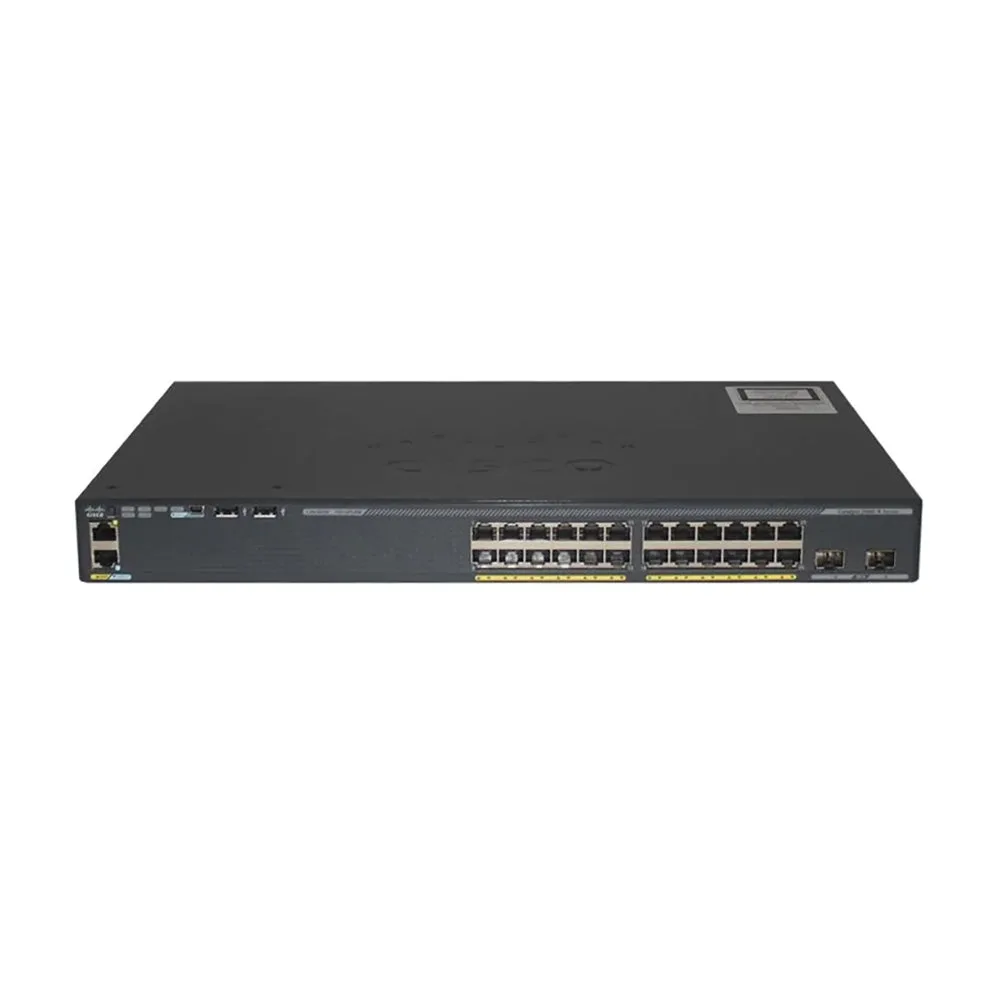

Cisco WS-C2960X-24TD-L
Catalyst 2960-X 24-port Gigabit data switch with 2 × 10G SFP+ uplinks. LAN Base.
- Ports
- 24
- Speed
- 1GE / 10GE
- PoE
- Non-PoE
- Capacity
- 216 Gbps full-duplex
- Request a Quote for this model
- Ask an Expert for technical clarification
- Model selection support against port / PoE / uplink needs
- Alternative model support when another catalog model fits better
Product overview
WS-C2960X-24TD-L is a 24-port Gigabit data-only Catalyst 2960-X with two 10G SFP+ uplinks, 216 Gbps, and 95.2 Mpps. It remains useful for LAN Base refreshes that stay on 2960-X.
Recategorized to Access. Prefer Catalyst 9200/9300 for new greenfield closets when budget allows.
Technical specifications
Key specifications for this model.
| Model | WS-C2960X-24TD-L |
|---|---|
| Manufacturer model | WS-C2960X-24TD-L |
| Display model | WS-C2960X-24TD-L |
| Network role | Access |
| Port count | 24 |
| Downlink / data ports | 24 × 10/100/1000 RJ-45 |
| Uplink ports | 2 × 10 GbE SFP+ |
| Port type | SFP+ |
| Port speed | 1GE / 10GE |
| Switching capacity | 216 Gbps full-duplex |
| Forwarding rate | 95.2 Mpps |
| PoE | Non-PoE |
| Stacking | FlexStack-Plus capable — confirm stack module/cables on quote |
| Power supply | Internal AC; typical draw about 34 W on authorized data |
| Dimensions | 17.5 × 11.0 × 1.75 in |
| Weight | 8.9 lb (4.0 kg) |
| Availability | Quote on request |
Hardware, performance, and power
Performance
- 216 Gbps full-duplex
- 95.2 Mpps
Power
- Internal AC, Non-PoE
Physical
- About 17.5 × 11.0 × 1.75 in
Deployment role
- Campus access data closet
Deployment scenarios
2960-X stack refreshes.
Data-only closets with 10G uplinks.
Suitable for SMB / small-site access deployments where this platform class is required. Confirm faceplate, modules, and software options against the project design.
Technical selection notes
For PoE, use WS-C2960X-48LPD-L or a Catalyst 9300 PoE PID.
Not recommended for
Not a PoE switch.
Not a fiber aggregation 3850.
Not a data-center leaf.
What to confirm on the quote
- Exact PID WS-C2960X-24TD-L
- 10G optic type
- FlexStack yes/no
- Quantity, destination, availability
Related / alternative models
Same-brand family first, then same deployment role, then cross-brand equivalents when useful. Different power/optic technologies are labeled explicitly.
FAQ
Is it PoE?
Non-PoE.
What uplinks are listed?
2 × 10G SFP+.
Capacity?
216 Gbps full-duplex and 95.2 Mpps.
What belongs on the RFQ?
Exact PID, optics, stack needs, quantity, destination.
Does it stack?
FlexStack-Plus capable — confirm stack module and cables on the quote.
24TD vs 48LPD?
24TD is 24-port data-only. 48LPD is 48-port PoE+ with a 370W budget.
Resources
Request a quote for WS-C2960X-24TD-L
Share quantity, preferred condition, and deployment requirements. For exact configuration and availability, request a quote.
