Product

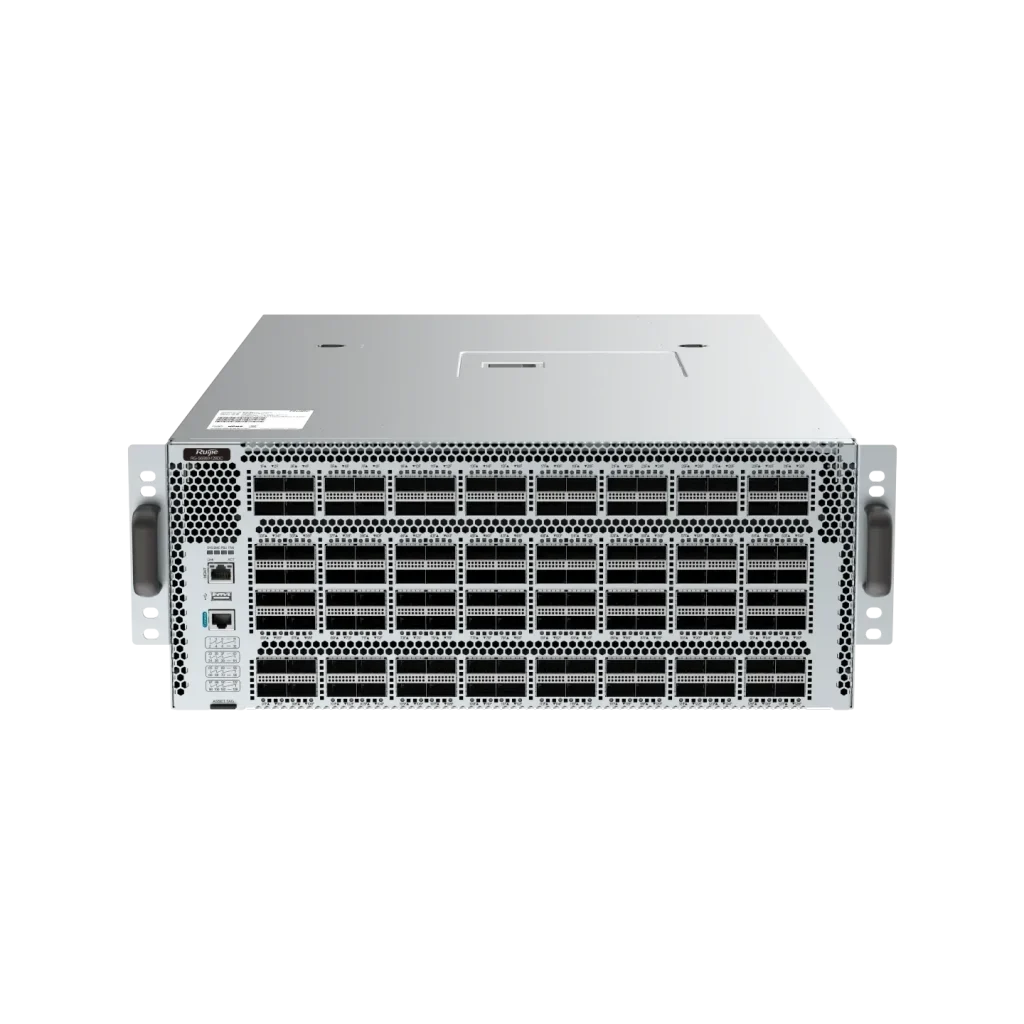

Ruijie RG-S6980-128DC
High-density Ruijie data-center switch with 128 × 200GE QSFP56. 51.2 Tbps and 10,300 Mpps on this listing.
- Ports
- 128
- Capacity
- 51.2 Tbps
- Request a Quote for this model
- Ask an Expert for technical clarification
- Model selection support against port / PoE / uplink needs
- Alternative model support when another catalog model fits better
Product overview
Ruijie RG-S6980-128DC is designed for data center network roles in the ruijie-rg-s6900-series family. Suitable for procurement shortlists where this model matches the required platform class. Key considerations when selecting include port/module needs, uplink design, and feature licensing for your site. For exact configuration and availability, request a quote.
Technical specifications
Key specifications for this model.
| Model | RG-S6980-128DC |
|---|---|
| Manufacturer model | RG-S6980-128DC |
| Display model | RG-S6980-128DC |
| Layer | data-center |
| Port count | 128 |
| Downlink / data ports | 128 × 200GE QSFP56 |
| Port type | QSFP+ |
| Switching capacity | 51.2 Tbps |
| Forwarding rate | 10,300 Mpps |
| Power supply | 4 (supporting 2+2 redundancy) |
| Dimensions | 442 mm × 760 mm × 175 mm (17.40 in. × 29.92 in. × 6.89 in., 4 RU) |
| Weight | Approximately 39.65 kg (including fan and power modules) |
| Availability | Quote on request |
Deployment scenarios
Data-center fabrics that need a dense 200GE QSFP56 faceplate rather than a server TOR with SFP+/SFP28.
Data center leaf-spine / TOR planning based on the published optic mix. Leaf / TOR where the published optic map matches fabric speed. Fabric planning starts from published capacity (51.2 Tbps).
Technical selection notes
Treat it as a high-speed fabric switch, not a 10/25G server leaf. Confirm optic type, reach, and whether 200GE is the speed you will deploy. Four power supplies with 2+2 redundancy are listed.
Not recommended for
Not a campus access switch and not a 48-port 10G or 25G leaf.
Related / alternative models
Same-brand family first, then same deployment role, then cross-brand equivalents when useful. Different power/optic technologies are labeled explicitly.
Same brand
Ruijie RG-S6920-4C
1 × Management, 1 × Console, 1 × USB 2.0 · 25.6 Tbps · Modular chassis
Same brand
Ruijie RG-S6930-2C
1 × Management, 1 × Console, 1 × USB 2.0 · 28.8 Tbps · Modular chassis
FAQ
What ports are listed on RG-S6980-128DC?
128 × 200GE QSFP56. A separate uplink row is not published on this record.
What capacity is listed?
51.2 Tbps switching capacity and 10,300 Mpps forwarding rate.
Does it support PoE?
PoE is not part of this data-center PID. Do not shortlist it for powered closets.
How is RG-S6990-64OC2XS different?
RG-S6990-64OC2XS lists 64 ports in a 200/400/800G range and a higher capacity figure. Match the optic speed before choosing either PID.
Resources
Request a quote for RG-S6980-128DC
Share quantity, preferred condition, and deployment requirements. For exact configuration and availability, request a quote.
