Ports and uplinks
- 44 × GE SFP
- 4 × 10GE SFP+
- 6 × 40GE QSFP+
Product

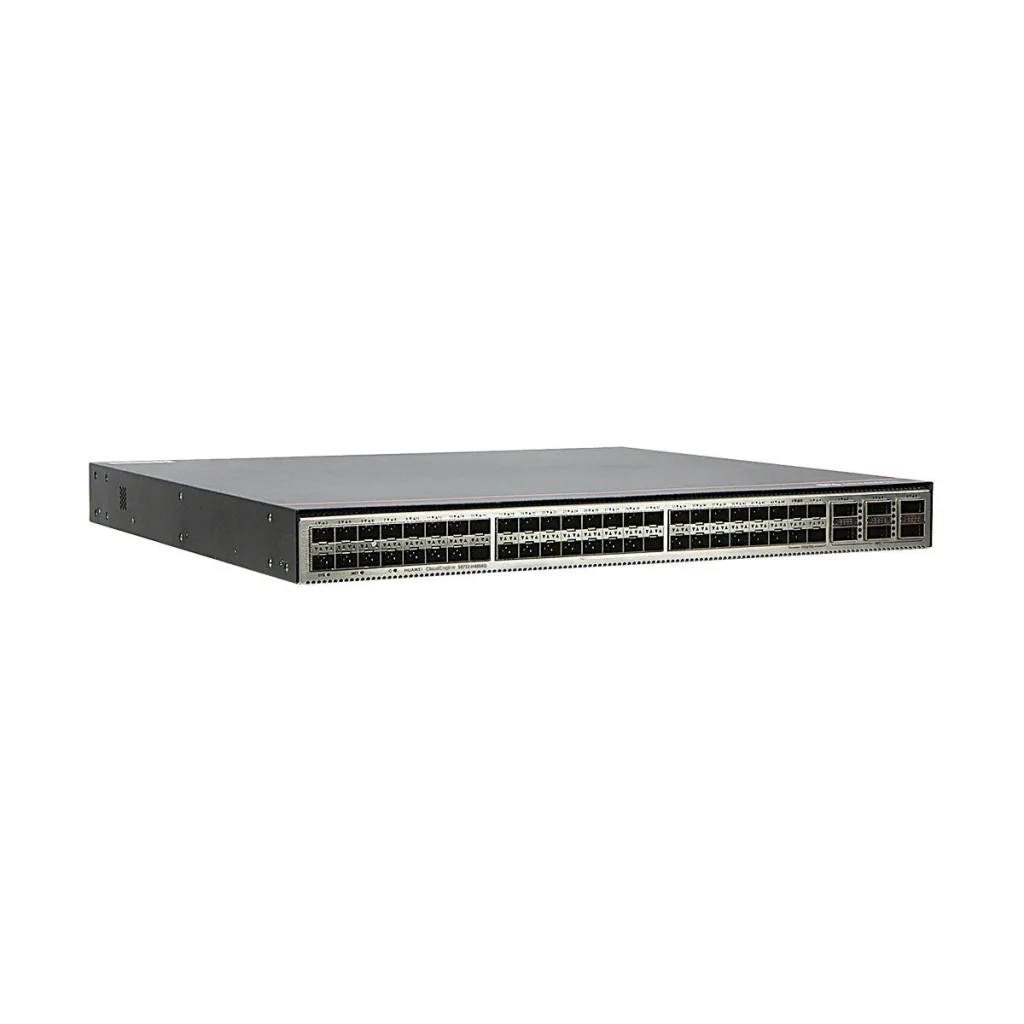

Huawei S5732-H48S6Q
Huawei CloudEngine S5732-H fiber aggregation switch with GE SFP access, 10GE, and 40GE uplinks.
- Ports
- 44
- PoE
- Non-PoE
- Capacity
- Up to 2.4 Tbps
- Request a Quote for this model
- Ask an Expert for technical clarification
- Model selection support against port / PoE / uplink needs
- Alternative model support when another catalog model fits better
Product overview
S5732-H48S6Q is a campus aggregation switch with an all-optical access faceplate. The listing shows 44 × GE SFP, 4 × 10GE SFP+, and 6 × 40GE QSFP+, with up to 2.4 Tbps capacity and 486 Mpps forwarding. PoE is Non-PoE. Dual PSUs are listed; the 1000W figure on related materials is system power budget, not a PoE budget.
Use it when aggregation is fiber-in/fiber-out at GE and you need 40G northbound options. Do not place it on a 100G fixed data-center shortlist.
Technical specifications
Key specifications for this model.
| Model | S5732-H48S6Q |
|---|---|
| Manufacturer model | S5732-H48S6Q |
| Display model | S5732-H48S6Q |
| Network role | Aggregation |
| Port count | 44 |
| Downlink / data ports | 44 × GE SFP ports |
| Uplink ports | 4 × 10GE SFP+ ports and 6 × 40GE QSFP+ ports |
| Port type | SFP |
| Switching capacity | Up to 2.4 Tbps |
| Forwarding rate | 486 Mpps |
| PoE | Non-PoE |
| Stacking | Yes (iStack) |
| Power supply | Dual pluggable AC/DC power modules, supports up to 1000W power budget |
| Operating temperature | −5°C to 45°C |
| Dimensions | 442 × 420 × 43.6 mm (17.4 × 16.5 × 1.7 in) |
| Weight | ≤ 9.2 kg (20.28 lb) |
| Availability | Quote on request |
Hardware, performance, and power
Performance
- Up to 2.4 Tbps
- 486 Mpps
Stacking and redundancy
- iStack on this series listing
- Dual pluggable PSU
Power
- Non-PoE faceplate
- The 1000W figure on related materials is system power, not PoE
- About 442 × 420 × 43.6 mm; weight ≤ 9.2 kg on authorized listings
Deployment role
- Campus fiber aggregation, not a 100G data-center faceplate
Deployment scenarios
Campus aggregation where access is already optical GE.
Buildings that need 40G uplinks without moving to a 100G data-center PID.
Huawei CloudEngine S5732 shortlists that require this exact H48S6Q faceplate.
Technical selection notes
The 1000W power figure is not PoE. Confirm optic types (GE / 10G / 40G) on the RFQ. Dimensions/weight above are from authorized network-switch.com data for this PID.
Not recommended for
Not a copper PoE closet switch.
Not a 32×100G or 64×100G data-center faceplate.
Not interchangeable with S5732-H48UM2CC multi-GE copper PIDs.
What to confirm on the quote
- Exact PID S5732-H48S6Q
- GE, 10G, and 40G optic mix
- Dual PSU confirmation
- Quantity and destination
- Request documentation and current availability
Related / alternative models
Same-brand family first, then same deployment role, then cross-brand equivalents when useful. Different power/optic technologies are labeled explicitly.
FAQ
What ports are listed?
44 × GE SFP, 4 × 10GE SFP+, and 6 × 40GE QSFP+.
Is the 1000W figure PoE?
No. This faceplate is Non-PoE. Treat 1000W as system power budget language, not endpoint PoE.
What capacity is listed?
Up to 2.4 Tbps and 486 Mpps.
Is this a data-center 100G switch?
No. Network role is Aggregation. Use CE8850 or RG-S6520-class PIDs for fixed 100G fabrics.
What belongs on the RFQ?
Exact PID, optic mix (GE/10G/40G), dual PSU confirmation, quantity, destination, and documentation request.
Resources
Request a quote for S5732-H48S6Q
Share quantity, preferred condition, and deployment requirements. For exact configuration and availability, request a quote.
