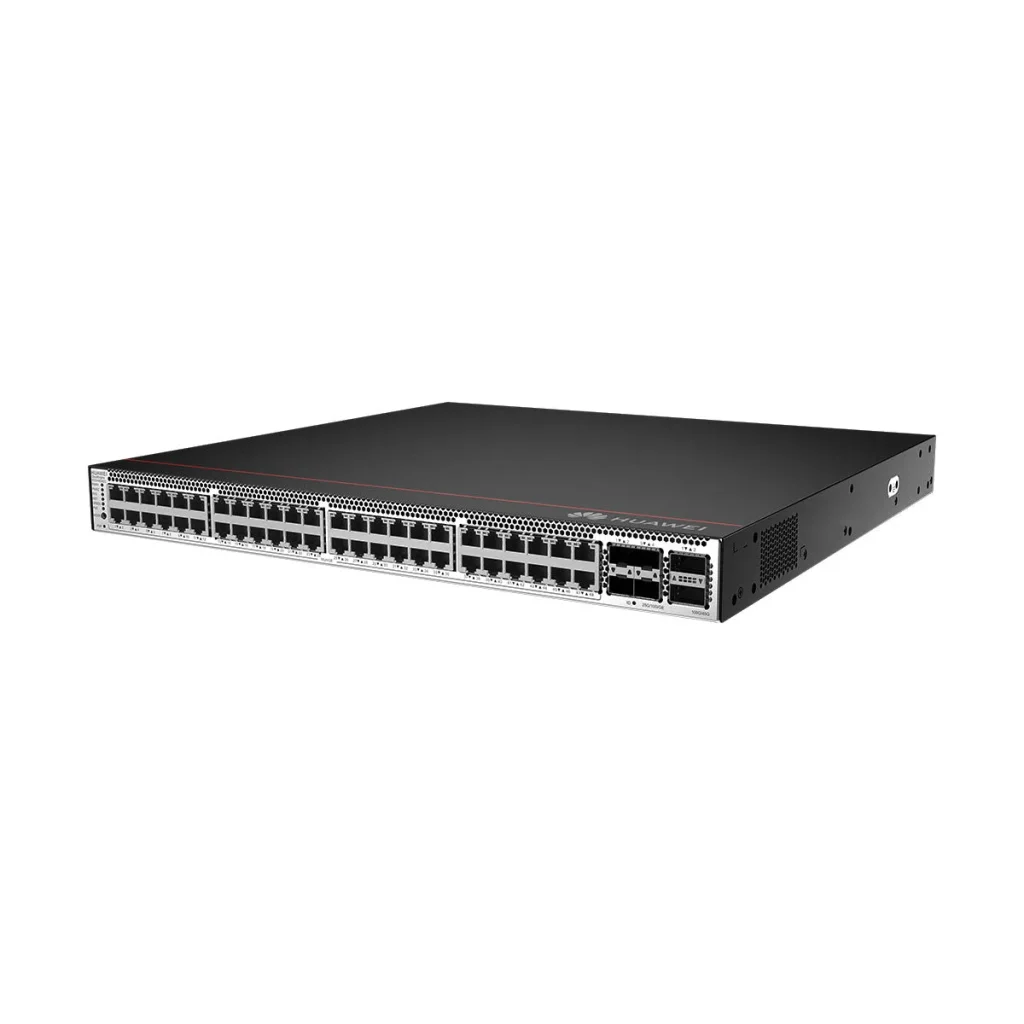

Huawei S5732-H48UM2CC
Huawei CloudEngine S5732 Multi-GE campus access switch with high-density copper and modular uplinks.
- Ports
- 48
- Speed
- 1G
- Capacity
- Up to 2.4 Tbps
- Request a Quote for this model
- Ask an Expert for technical clarification
- Model selection support against port / PoE / uplink needs
- Alternative model support when another catalog model fits better
Product overview
Huawei S5732-H48UM2CC is designed for campus core / aggregation network roles in the huawei-cloudengine-s5732-series family. Suitable for procurement shortlists where this model matches the required platform class. Key considerations when selecting include port/module needs, uplink design, and feature licensing for your site. For exact configuration and availability, request a quote.
Technical specifications
Key specifications for this model.
| Model | S5732-H48UM2CC |
|---|---|
| Manufacturer model | S5732-H48UM2CC |
| Display model | S5732-H48UM2CC |
| Layer | access-poe |
| Port count | 48 |
| Downlink / data ports | 48 × 100M/1G/2.5G/5G/10G Base-T Ethernet ports |
| Uplink ports | 4 × 25GE SFP28 ports and 2 × 40GE or 2 × 100GE QSFP28 ports |
| Port type | RJ45 |
| Port speed | 1G |
| Switching capacity | Up to 2.4 Tbps |
| Forwarding rate | 490 Mpps |
| Stacking | Yes (iStack) |
| Power supply | Dual pluggable AC/DC power modules, supports up to 1000W PoE power budget |
| Dimensions | 442 mm × 420 mm × 43.6 mm (17.4 in. × 16.5 in. × 1.7 in.) |
| Weight | ≤ 9.2 kg (20.28 lbs) |
| Availability | Quote on request |
Key features
Role: core
Deployment scenarios
Enterprise campus core where uplink density is the primary constraint. Campus core or collapsed-core where northbound uplinks are the constraint.
Technical selection notes
Select S5732-H48UM2CC when the requirement matches this series positioning (Huawei CloudEngine S5732). Treat HA claims only when the source table states redundant supervisor/PSU language.
Not recommended for
High-density 25/100G server leaf unless those optics appear on this PID.
Related / alternative models
Same-brand family first, then same deployment role, then cross-brand equivalents when useful. Different power/optic technologies are labeled explicitly.
FAQ
What is S5732-H48UM2CC used for?
It is a Multi-GE campus access platform for wiring closets that need higher-than-1G copper access for APs and endpoints, with modular uplink options.
How is this different from an S7700 chassis?
S5732 is a fixed/modular-uplink campus access switch. S7700 (for example S7712) is a modular chassis for aggregation/core with line-card expansion.
Does it support PoE?
Confirm PoE capability and budget against the exact PID and installed power modules before ordering. Share endpoint load in the RFQ.
What should I include when requesting a quote?
Share quantity, uplink module preference, PoE load estimate, and whether Multi-GE access is required versus 1G.
