Ports and uplinks
- 8 × 1G PoE+
- 2 × GE SFP
Product

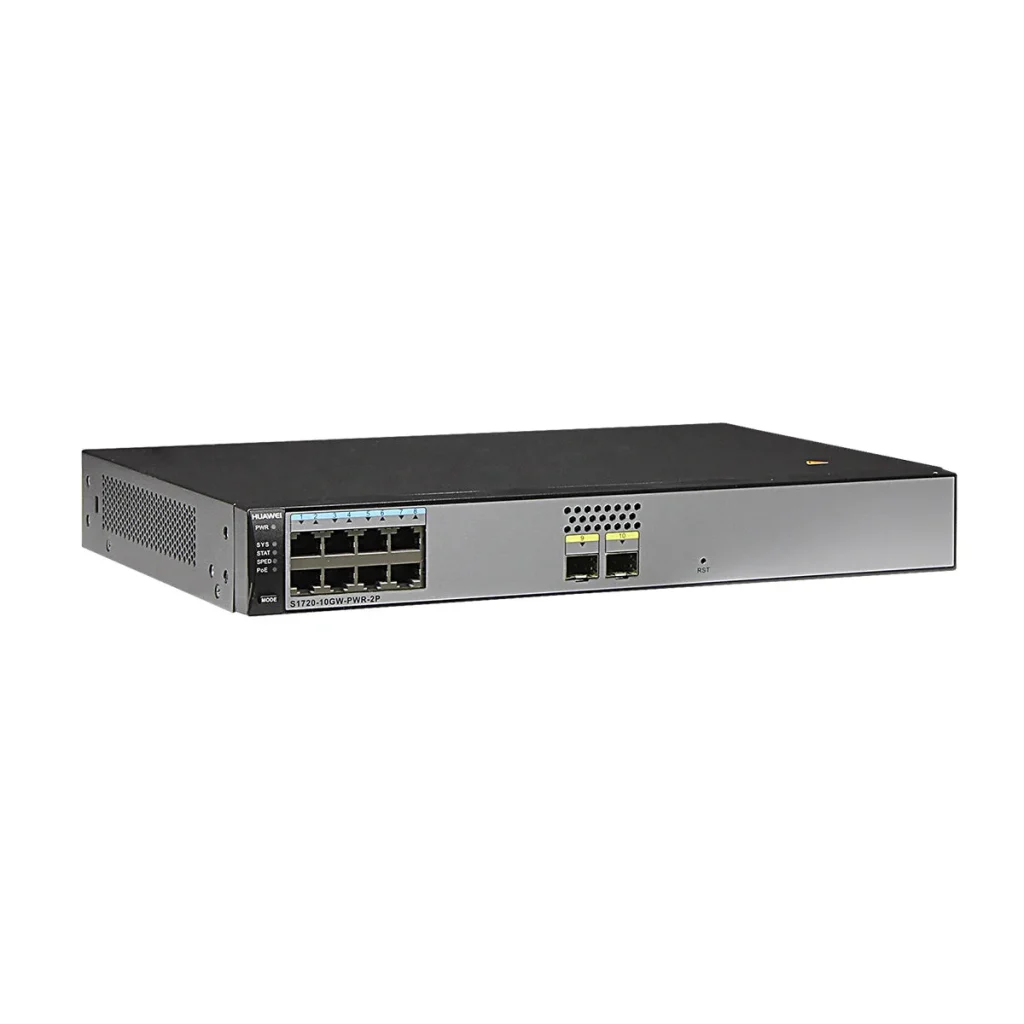

Huawei S1720-10GW-PWR-2P
Huawei S1720 8-port Gigabit PoE+ access switch with 2 × GE SFP uplinks and up to 124W PoE budget.
- Ports
- 8
- Speed
- 1GE PoE+
- PoE
- PoE+
- Capacity
- 68 Gbps
- Request a Quote for this model
- Ask an Expert for technical clarification
- Model selection support against port / PoE / uplink needs
- Alternative model support when another catalog model fits better
Product overview
S1720-10GW-PWR-2P is an 8-port PoE+ compact access switch with two GE SFP uplinks, up to 124 W PoE, 68 Gbps, and 15 Mpps.
Recategorized to Access + PoE. Use for very small cabinets; escalate to S5735 or Catalyst PoE PIDs when ports or watts grow.
Technical specifications
Key specifications for this model.
| Model | S1720-10GW-PWR-2P |
|---|---|
| Manufacturer model | S1720-10GW-PWR-2P |
| Display model | S1720-10GW-PWR-2P |
| Network role | Access |
| Port count | 8 |
| Downlink / data ports | 8 × 10/100/1000BASE-T PoE+ |
| Uplink ports | 2 × Gigabit SFP |
| Port type | RJ45 |
| Port speed | 1GE PoE+ |
| Switching capacity | 68 Gbps |
| Forwarding rate | 15 Mpps |
| PoE | PoE+ |
| PoE budget | Up to 124 W |
| Power supply | AC input 100–240 V, 50/60 Hz |
| Dimensions | 320 × 220 × 43.6 mm |
| Weight | ≤ 2.9 kg |
| Availability | Quote on request |
Hardware, performance, and power
Performance
- 68 Gbps
- 15 Mpps
Power and PoE
- Up to 124 W PoE
- Internal AC
Physical
- About 320 × 220 × 43.6 mm
- ≤ 2.9 kg
Deployment role
- Compact PoE access
Deployment scenarios
Tiny branch PoE cabinets.
Huawei S1720 HPWR shortlists.
Campus / branch access closets where user density and PoE budget matter. Wiring closet / branch / campus access feeding APs, phones, or cameras within listed PoE budget. Density starts at the published 8-port faceplate.
Technical selection notes
124 W is easy to overrun with dense cameras — ask for the watt plan early.
Not recommended for
Not a 24/48-port closet switch.
Not a 10G aggregation switch.
What to confirm on the quote
- Exact PID S1720-10GW-PWR-2P
- Watt estimate vs 124 W
- SFP optic type
- Quantity, destination, availability
Related / alternative models
Same-brand family first, then same deployment role, then cross-brand equivalents when useful. Different power/optic technologies are labeled explicitly.
FAQ
What PoE budget is listed?
Up to 124 W.
How many access ports?
8 × 1G PoE+.
What uplinks are listed?
2 × Gigabit SFP.
Capacity?
68 Gbps and 15 Mpps.
When should I move up to S5735-L12P4S-A?
When you need more ports or a higher watt budget (360 W on that PID).
What belongs on the RFQ?
Exact PID, watt plan, optics, quantity, destination.
Resources
Request a quote for S1720-10GW-PWR-2P
Share quantity, preferred condition, and deployment requirements. For exact configuration and availability, request a quote.
