Ports and uplinks
- 12 × 1G PoE+
- 4 × GE SFP
Product

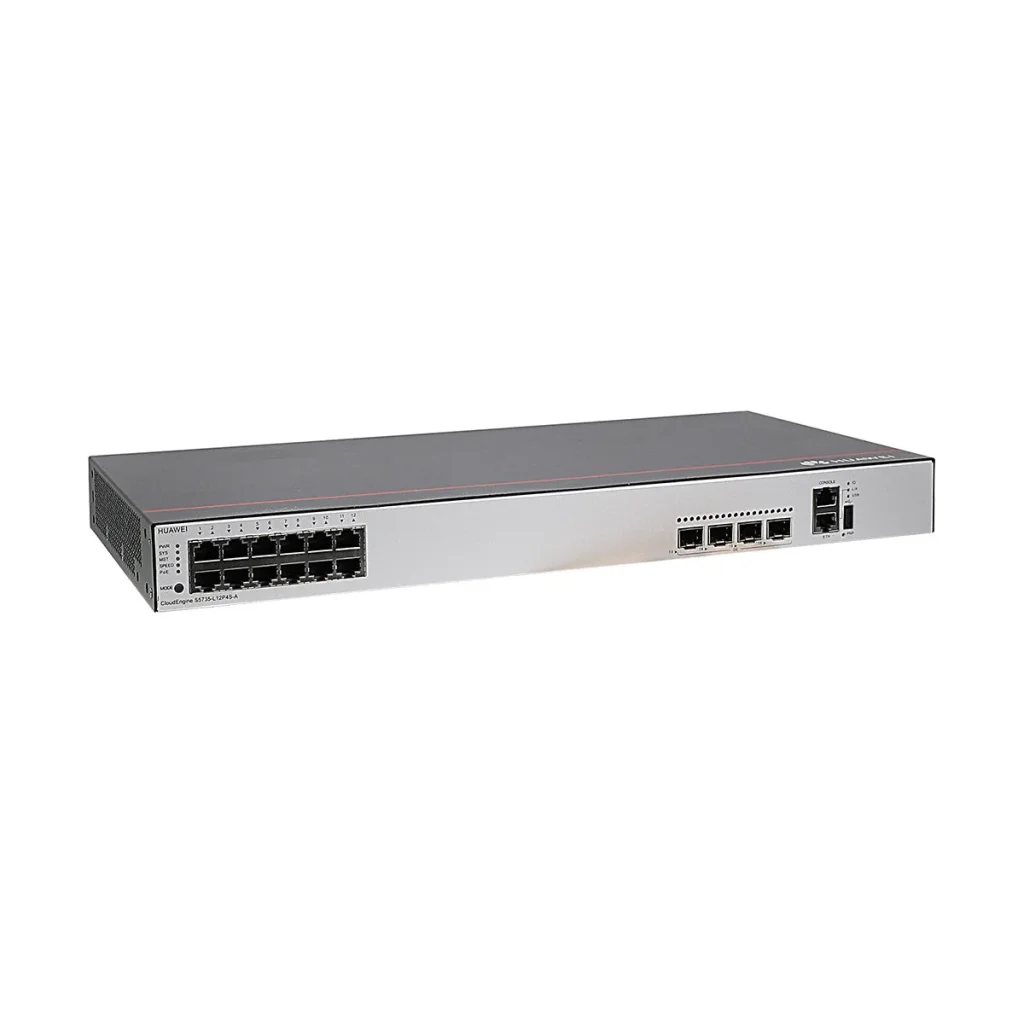

Huawei S5735-L12P4S-A
Huawei CloudEngine S5735 12-port Gigabit PoE+ access switch with 4 × GE SFP uplinks and 360W PoE budget.
- Ports
- 12
- Speed
- 1GE PoE+
- PoE
- PoE+
- Capacity
- 32 Gbps / 336 Gbps
- Request a Quote for this model
- Ask an Expert for technical clarification
- Model selection support against port / PoE / uplink needs
- Alternative model support when another catalog model fits better
Product overview
S5735-L12P4S-A is a compact 12-port PoE+ access switch with four GE SFP uplinks, a 360 W PoE budget, 32/336 Gbps capacity language, and 24 Mpps forwarding.
Recategorized to Access + PoE. Use it for small PoE closets; move to denser Catalyst/Huawei 24/48-port PIDs when port count grows.
Technical specifications
Key specifications for this model.
| Model | S5735-L12P4S-A |
|---|---|
| Manufacturer model | S5735-L12P4S-A |
| Display model | S5735-L12P4S-A |
| Network role | Access |
| Port count | 12 |
| Downlink / data ports | 12 × 10/100/1000BASE-T PoE+ |
| Uplink ports | 4 × GE SFP |
| Port type | RJ45 |
| Port speed | 1GE PoE+ |
| Switching capacity | 32 Gbps / 336 Gbps |
| Forwarding rate | 24 Mpps |
| PoE | PoE+ |
| PoE budget | 360 W |
| Power supply | Built-in AC power module |
| Dimensions | 442 × 220 × 43.6 mm |
| Weight | 4.24 kg |
| Availability | Quote on request |
Hardware, performance, and power
Performance
- 32 / 336 Gbps listed
- 24 Mpps
Power and PoE
- 360 W PoE budget
- Built-in AC
Physical
- About 442 × 220 × 43.6 mm
- About 4.24 kg
Deployment role
- Small campus/branch PoE access
Deployment scenarios
Branch PoE closets with modest port counts.
Huawei S5735-L shortlists needing this exact L12P4S-A PID.
Campus / branch access closets where user density and PoE budget matter. Wiring closet / branch / campus access feeding APs, phones, or cameras within listed PoE budget. Density starts at the published 12-port faceplate.
Technical selection notes
Size cameras/APs against 360 W. If you need 24/48 ports, do not stretch this PID.
Not recommended for
Not a 24/48-port high-density PoE switch.
Not a data-center leaf.
What to confirm on the quote
- Exact PID S5735-L12P4S-A
- Endpoint watt estimate vs 360 W
- 1G SFP optic type
- Quantity, destination, documentation
Related / alternative models
Same-brand family first, then same deployment role, then cross-brand equivalents when useful. Different power/optic technologies are labeled explicitly.
FAQ
What PoE budget is listed?
360 W.
What uplinks are listed?
4 × GE SFP.
How many access ports?
12 × 1G PoE+.
Capacity?
32 Gbps / 336 Gbps listed with 24 Mpps.
What belongs on the RFQ?
Exact PID, watt plan, optics, quantity, destination.
Is this an SMB-only toy switch?
It is a compact access PoE PID — still quote exact model and watt plan.
Resources
Request a quote for S5735-L12P4S-A
Share quantity, preferred condition, and deployment requirements. For exact configuration and availability, request a quote.
