Ports and uplinks
- 24 × 1G RJ-45
- 4 × 10GE SFP+ fixed uplinks
Product

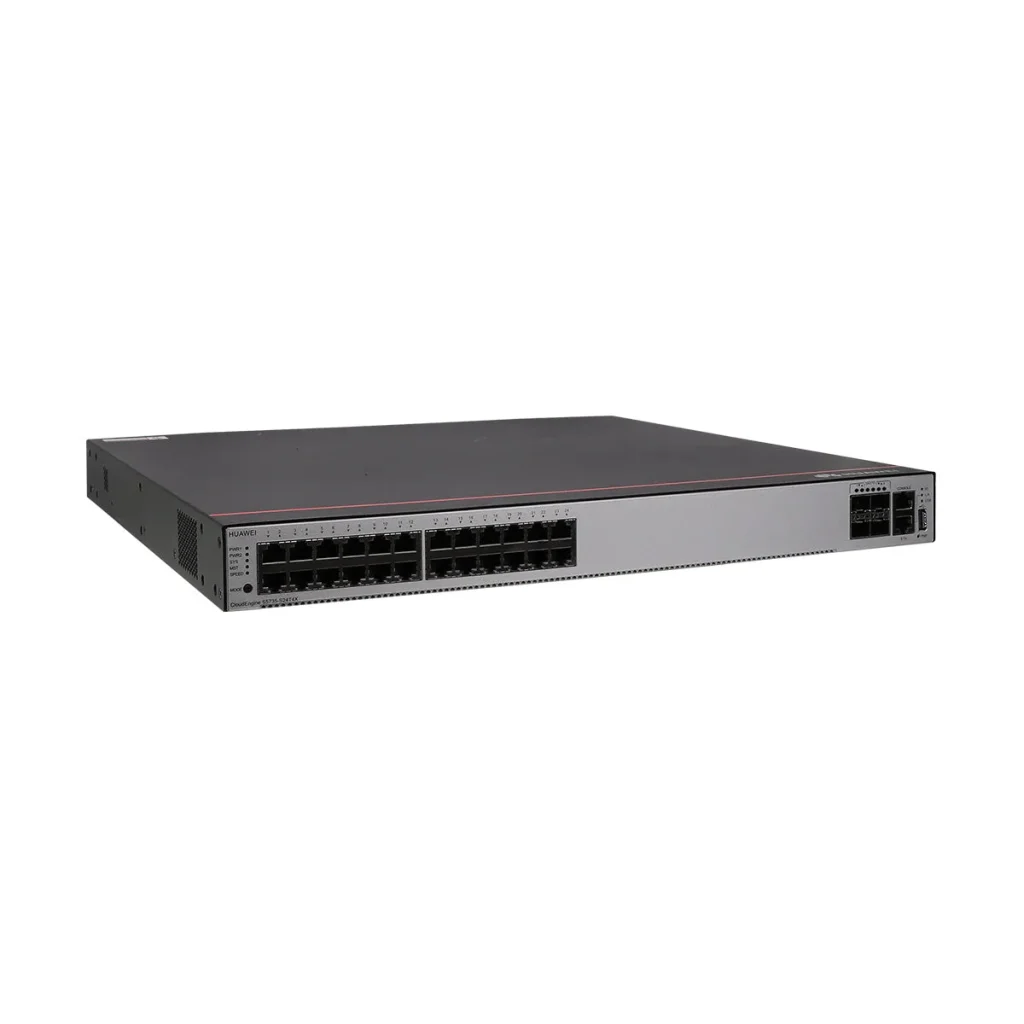

Huawei S5735-S24T4X
Huawei CloudEngine S5735 24-port Gigabit access switch with 4 × 10GE SFP+ uplinks. Non-PoE.
- Ports
- 24
- Speed
- 1G
- PoE
- Non-PoE
- Capacity
- 128 Gbps / 336 Gbps
- Request a Quote for this model
- Ask an Expert for technical clarification
- Model selection support against port / PoE / uplink needs
- Alternative model support when another catalog model fits better
Product overview
S5735-S24T4X is a 24-port Gigabit copper access switch with four 10G SFP+ uplinks. The listing shows 24 × 1G copper, 4 × 10GE SFP+, Non-PoE, capacity 128/336 Gbps language on this catalog row, 96 Mpps forwarding, iStack up to 9, and dual modular PSU.
Use it for campus or branch access when endpoints do not need PoE and 10G uplinks are required.
Technical specifications
Key specifications for this model.
| Model | S5735-S24T4X |
|---|---|
| Manufacturer model | S5735-S24T4X |
| Display model | S5735-S24T4X |
| Network role | Access |
| Port count | 24 |
| Downlink / data ports | 24 x 10/100/1000BASE-T |
| Uplink ports | 4 x 10GE SFP+ |
| Port type | RJ45 |
| Port speed | 1G |
| Switching capacity | 128 Gbps / 336 Gbps |
| Forwarding rate | 96 Mpps |
| PoE | Non-PoE |
| Stacking | iStack up to 9 units |
| Power supply | Dual modular PSU (1+1 redundancy) |
| Dimensions | 442 x 420 x 43.6 mm |
| Weight | 7.21 kg (with packaging) |
| Availability | Quote on request |
Hardware, performance, and power
Performance
- Capacity listed as 128 / 336 Gbps on this catalog row
- 96 Mpps forwarding
Stacking and redundancy
- iStack up to 9
- Dual modular PSU
Power
- Non-PoE — powered endpoints need a different PID
Deployment role
- Campus or branch access without PoE
Deployment scenarios
Office or education access closets without PoE endpoints.
Branches that want Huawei S5735 with 10G uplinks.
Stackable access rings that stay on Gigabit copper southbound.
Technical selection notes
If APs need power, do not stretch this Non-PoE PID — quote a PoE S5735/S5732 variant instead. Confirm 10G optic type on the RFQ.
Not recommended for
Not a PoE access switch.
Not a 100G data-center leaf.
Not fiber GE aggregation like S5732-H48S6Q.
What to confirm on the quote
- Exact PID S5735-S24T4X
- 10G optic type
- Stack yes or no
- Quantity and destination
- Request availability from sales
Related / alternative models
Same-brand family first, then same deployment role, then cross-brand equivalents when useful. Different power/optic technologies are labeled explicitly.
FAQ
Does S5735-S24T4X support PoE?
No. Non-PoE on this listing.
What uplinks are listed?
4 × 10GE SFP+.
Can it stack?
iStack up to 9 is listed.
When should I use S5732-H48S6Q instead?
When aggregation is optical GE with 40G uplinks, not 24 copper access ports.
What belongs on the RFQ?
Exact PID, 10G optic type, stack yes/no, quantity, destination, documentation request.
Resources
Request a quote for S5735-S24T4X
Share quantity, preferred condition, and deployment requirements. For exact configuration and availability, request a quote.
