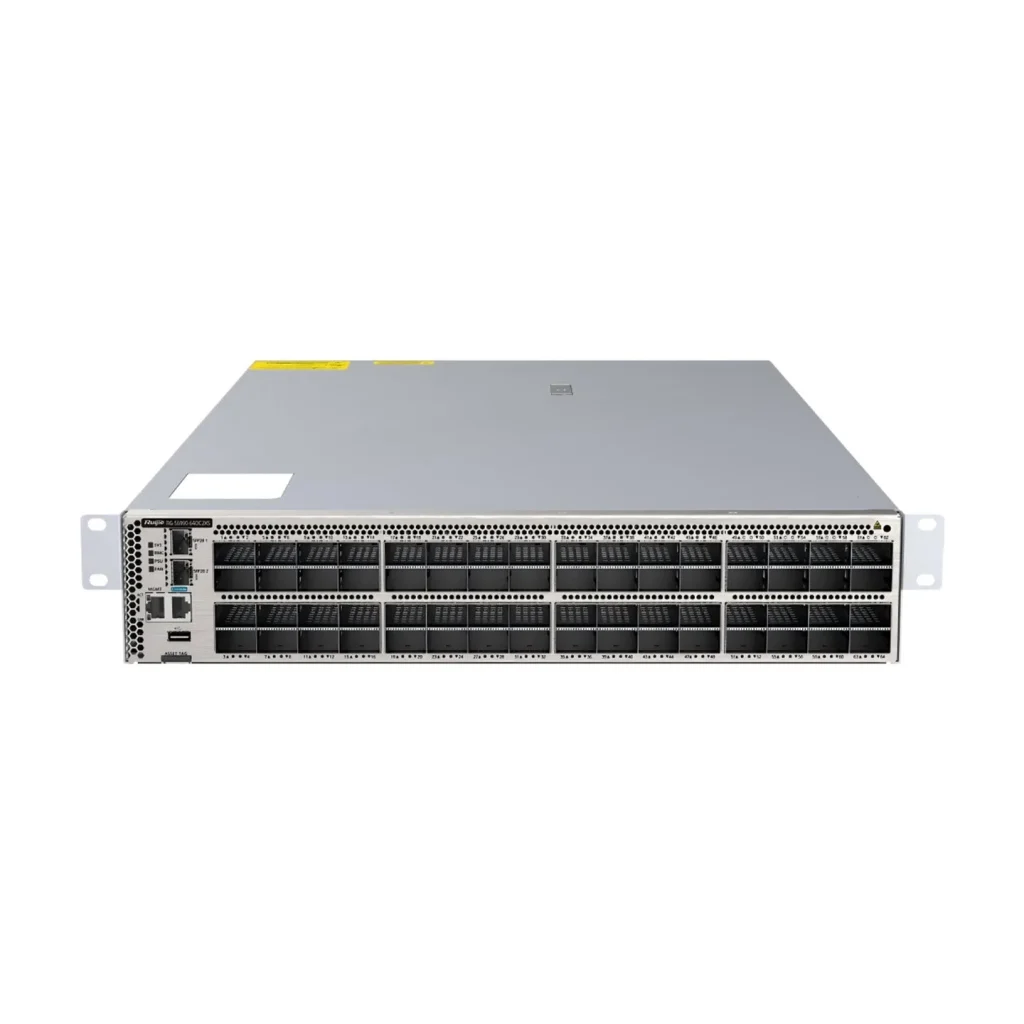

Ruijie RG-S6990-64OC2XS
High-speed Ruijie data-center switch listed with 64 × 200G/400G/800G ports and up to 102.4 Tbps.
- Ports
- 64
- Speed
- 400G
- Capacity
- Up to 102.4 Tbps
- Request a Quote for this model
- Ask an Expert for technical clarification
- Model selection support against port / PoE / uplink needs
- Alternative model support when another catalog model fits better
Product overview
Ruijie RG-S6990-64OC2XS is designed for data center network roles in the ruijie-rg-s6900-series family. Suitable for procurement shortlists where this model matches the required platform class. Key considerations when selecting include port/module needs, uplink design, and feature licensing for your site. For exact configuration and availability, request a quote.
Technical specifications
Key specifications for this model.
| Model | RG-S6990-64OC2XS |
|---|---|
| Manufacturer model | RG-S6990-64OC2XS |
| Display model | RG-S6990-64OC2XS |
| Layer | data-center |
| Port count | 64 |
| Downlink / data ports | 64 × 200G/400G/800G |
| Port speed | 400G |
| Switching capacity | Up to 102.4 Tbps |
| Forwarding rate | Up to 21,000 Mpps |
| Power supply | Dual hot-swappable PA3000I-F |
| Dimensions | 440 × 760 × 86.1 mm |
| Weight | 26 kg (with 2 power modules & 4 fan modules) |
| Availability | Quote on request |
Deployment scenarios
Spine or high-speed fabric roles where 200G, 400G, or 800G optics are already in the design.
Data center leaf-spine / TOR planning based on the published optic mix. Leaf / TOR where the published optic map matches fabric speed. Fabric planning starts from published capacity (Up to 102.4 Tbps).
Technical selection notes
The port row is a speed range, not a promise that every port runs at 800G. Confirm the optic speed, fiber plant, and power (dual PA3000I-F supplies are listed) before RFQ.
Not recommended for
Not a campus switch and not a 48-port 10/25G leaf.
Related / alternative models
Same-brand family first, then same deployment role, then cross-brand equivalents when useful. Different power/optic technologies are labeled explicitly.
Same brand
Ruijie RG-S6920-4C
1 × Management, 1 × Console, 1 × USB 2.0 · 25.6 Tbps · Modular chassis
Same brand
Ruijie RG-S6930-2C
1 × Management, 1 × Console, 1 × USB 2.0 · 28.8 Tbps · Modular chassis
FAQ
What does the 64-port row mean?
The listing says 64 × 200G/400G/800G. Confirm which of those speeds you will actually deploy. Do not assume 800G on every port.
What capacity is listed?
Up to 102.4 Tbps and up to 21,000 Mpps.
What power supply is listed?
Dual hot-swappable PA3000I-F supplies.
Should this replace RG-S6980-128DC?
Only if you need the 64-port multi-rate faceplate instead of 128 × 200GE QSFP56. They are different PIDs.
