Ports and uplinks
- 12 × SFP+
- Modular uplink: C3850-NM-4-1G or C3850-NM-2-10G
Product

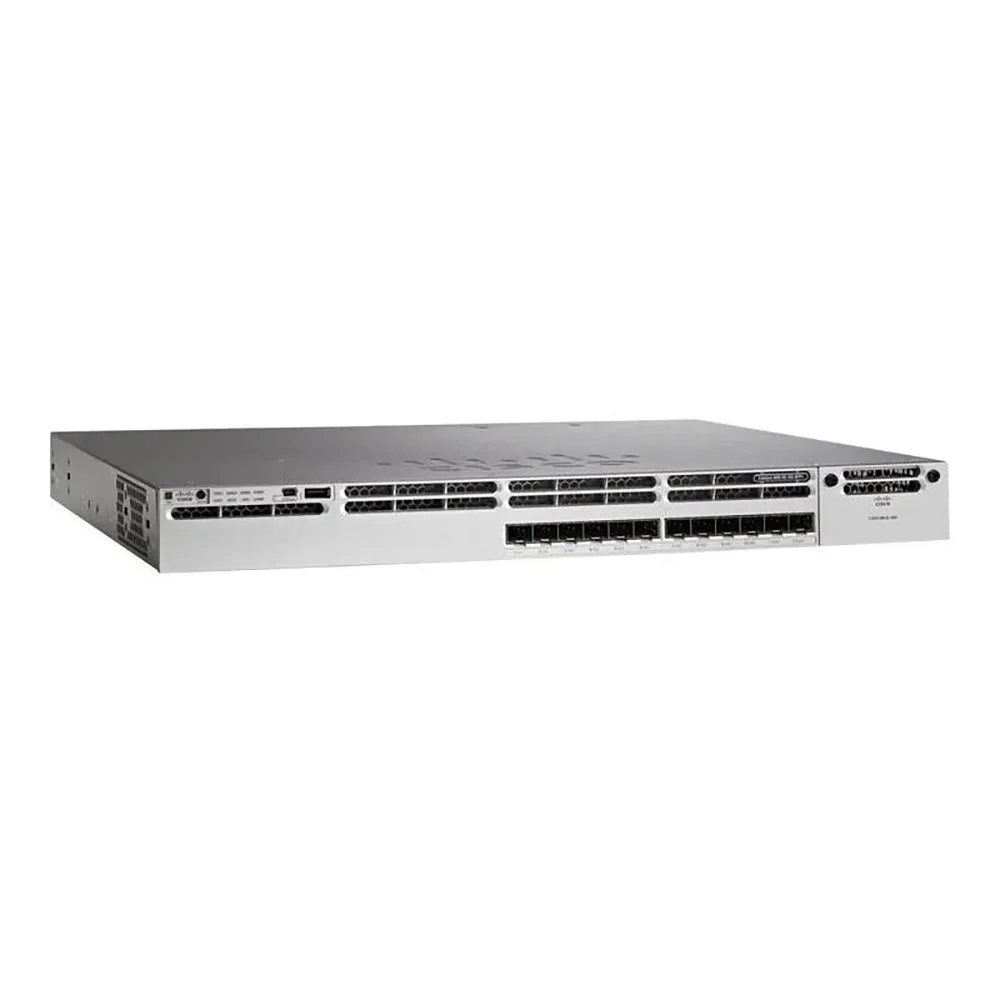

Cisco WS-C3850-12XS-S
Catalyst 3850 12-port 10G SFP+ fiber aggregation switch with IP Base (-S) feature set.
- Ports
- 12
- Speed
- 10GE SFP+
- PoE
- Non-PoE
- Capacity
- 320 Gbps
- Request a Quote for this model
- Ask an Expert for technical clarification
- Model selection support against port / PoE / uplink needs
- Alternative model support when another catalog model fits better
Product overview
WS-C3850-12XS-S is the IP Base (-S) 12-port 10G SFP+ Catalyst 3850 aggregation PID. It lists 320 Gbps, 227.28 Mpps, Non-PoE, PWR-C1-350WAC, and modular uplink options (C3850-NM-4-1G or C3850-NM-2-10G).
Use it when the design needs IP Base rather than IP Services (-E). See WS-C3850-12XS-E when IP Services is required.
Technical specifications
Key specifications for this model.
| Model | WS-C3850-12XS-S |
|---|---|
| Manufacturer model | WS-C3850-12XS-S |
| Display model | WS-C3850-12XS-S |
| Network role | Aggregation |
| Port count | 12 |
| Downlink / data ports | 12 × SFP+ ports |
| Uplink ports | C3850-NM-4-1G or C3850-NM-2-10G — confirm on quote |
| Port type | SFP+ |
| Port speed | 10GE SFP+ |
| Switching capacity | 320 Gbps |
| Forwarding rate | 227.28 Mpps |
| PoE | Non-PoE |
| Stacking | Up to 9 members — confirm stack kit and matching feature set |
| Power supply | PWR-C1-350WAC |
| Weight | 12.9 lb (5.8 kg) |
| Availability | Quote on request |
Hardware, performance, and power
Performance
- 320 Gbps
- 227.28 Mpps
Power
- PWR-C1-350WAC
- Non-PoE
Feature set
- IP Base (-S)
Stacking
- Up to 9 members — confirm kit
Deployment role
- Campus fiber aggregation
Deployment scenarios
10G fiber aggregation that must stay on IP Base.
3850 stacks that standardize on -S feature set.
Technical selection notes
Do not mix -S and -E assumptions in one stack without checking. Name the NM on the RFQ.
Not recommended for
Not an IP Services (-E) PID — use WS-C3850-12XS-E when -E is required.
Not a PoE copper access switch.
What to confirm on the quote
- Exact PID WS-C3850-12XS-S
- Network module
- Stack kit
- 10G optics
- Quantity, destination, availability
Related / alternative models
Same-brand family first, then same deployment role, then cross-brand equivalents when useful. Different power/optic technologies are labeled explicitly.
FAQ
Is this IP Base or IP Services?
IP Base (-S). Use -E when IP Services is required.
What downlinks are listed?
12 × SFP+ ports.
What capacity is listed?
320 Gbps and 227.28 Mpps.
Which uplinks are listed?
C3850-NM-4-1G or C3850-NM-2-10G — confirm one.
12XS-S vs 12S-E?
12XS is 10G SFP+. 12S is 1G SFP. Feature-set suffix is separate.
What belongs on the RFQ?
Exact PID, NM, stack kit, optics, quantity, destination.
Resources
Request a quote for WS-C3850-12XS-S
Share quantity, preferred condition, and deployment requirements. For exact configuration and availability, request a quote.
