Ports and uplinks
- 24 × SFP (1G)
- Modular uplink: C3850-NM-4-1G or C3850-NM-2-10G
Product

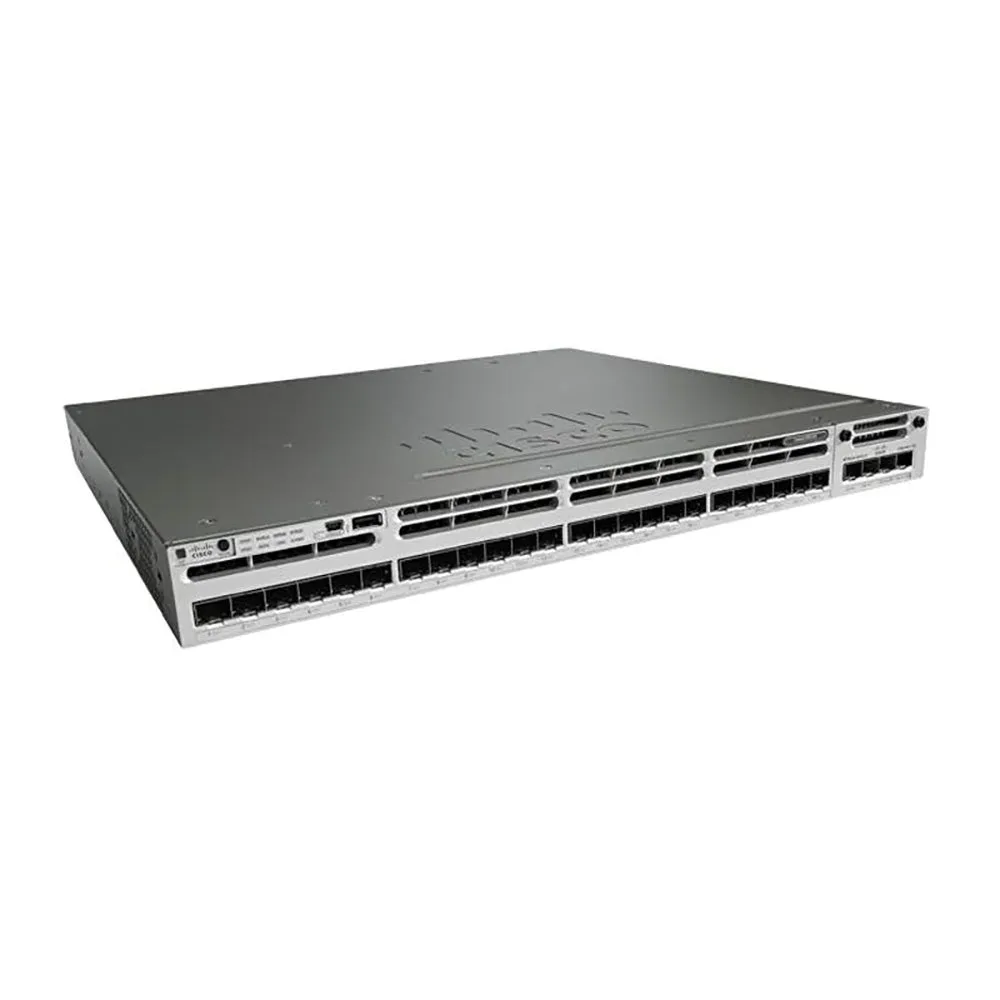

Cisco WS-C3850-24S-E
Catalyst 3850 24-port 1G SFP fiber aggregation switch with modular uplink. IP Services.
- Ports
- 24
- Speed
- 1GE SFP
- PoE
- Non-PoE
- Capacity
- 92 Gbps
- Request a Quote for this model
- Ask an Expert for technical clarification
- Model selection support against port / PoE / uplink needs
- Alternative model support when another catalog model fits better
Product overview
WS-C3850-24S-E provides twenty-four 1G SFP ports for optical access aggregation, with a network-module uplink path (C3850-NM-4-1G or C3850-NM-2-10G), 92 Gbps, 68.4 Mpps, Non-PoE, and PWR-C1-350WAC.
Choose it when aggregation is 1G fiber southbound. If southbound is already 10G, prefer WS-C3850-12XS-E.
Technical specifications
Key specifications for this model.
| Model | WS-C3850-24S-E |
|---|---|
| Manufacturer model | WS-C3850-24S-E |
| Display model | WS-C3850-24S-E |
| Network role | Aggregation |
| Port count | 24 |
| Downlink / data ports | 24 × SFP ports |
| Uplink ports | C3850-NM-4-1G or C3850-NM-2-10G — confirm on quote |
| Port type | SFP |
| Port speed | 1GE SFP |
| Switching capacity | 92 Gbps |
| Forwarding rate | 68.4 Mpps |
| PoE | Non-PoE |
| Stacking | Catalyst 3850 stacking — confirm stack kit on quote |
| Power supply | PWR-C1-350WAC |
| Weight | 15.48 Pounds (7.02Kg) |
| Availability | Quote on request |
Hardware, performance, and power
Performance
- 92 Gbps
- 68.4 Mpps
Power
- PWR-C1-350WAC
- Non-PoE
Deployment role
- 1G fiber campus aggregation
Deployment scenarios
Buildings with many 1G fiber access uplinks.
3850 optical stacks that need a 24S member.
Technical selection notes
Name the network module on the RFQ. Dirty bullet characters from older imports are not used on this cleaned row.
Not recommended for
Not a 10G SFP+ aggregation switch — use 12XS for that.
Not a PoE copper access switch.
What to confirm on the quote
- Exact PID WS-C3850-24S-E
- Network module PID
- 1G/10G optic plan
- Stack kit
- Quantity, destination, availability
Related / alternative models
Same-brand family first, then same deployment role, then cross-brand equivalents when useful. Different power/optic technologies are labeled explicitly.
FAQ
What downlinks are listed?
24 × SFP ports.
What uplinks are listed?
Network module options C3850-NM-4-1G or C3850-NM-2-10G — confirm one on the quote.
Capacity?
92 Gbps and 68.4 Mpps.
When is 12XS better?
When the southbound optics are 10G SFP+ rather than 1G SFP.
What belongs on the RFQ?
Exact PID, module, optics, stack kit, quantity, destination.
